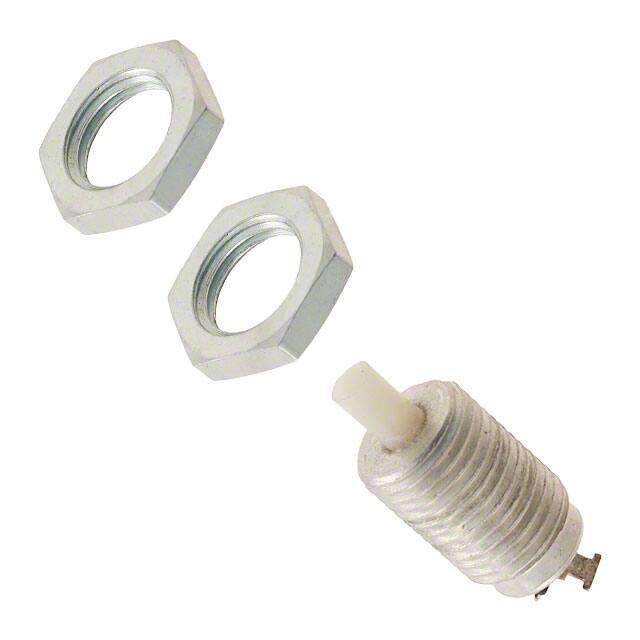

39-702
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 0.25A 115V
PDF
/
Buying Options
Total Price: USD $13.45
Unit Price: USD $13.454599
≥1 USD $13.454599
≥200 USD $5.206961
≥500 USD $5.024468
≥1000 USD $4.933878
Inventory: 978
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Actuator Length 4.19mm
Length - Termination 0.068 inch
Body Height 10.41mm
Technical
Contact Voltage Rating (AC) 220V
Bushing Diameter 0.312 inch
Operating Force-Max 3.34 N
Bushing Length 0.41 inch
Actuator Diameter 2.794 mm
Contact Function OFF-(ON)
Contact Current(AC)-Max 0.25A
Contact Current Rating 250mA
Throw Configuration SPST
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Max Current Rating 250mA
Max Voltage Rating (AC) 220V
Color - Actuator/Cap White
Insulation Resistance 1000000000Ohm
Contact Resistance 25mOhm
Panel Cutout Dimensions Circular - 8.61mm Dia
Switch Function On-Mom
Circuit SPST-NC
Actuator Type Round, Plunger
Body Length or Diameter 7.29mm
Voltage - Rated AC 115V
Termination Style Solder Lug
Current Rating 250mA
Orientation Straight
Current Rating (Amps) 250mA AC
HTS Code 8536.50.70.00
Voltage - Rated 220V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Sealed - Fully
JESD-609 Code e4
Series 39
Published 2003
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Terminal Material BRONZE
Actuator Material Thermoplastic
Housing Material BRASS CADMIUM PLATED
Insulation Material PHENOLIC
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Gold
Contact Material Silver
Supply Chain
Factory Lead Time 16 Weeks
