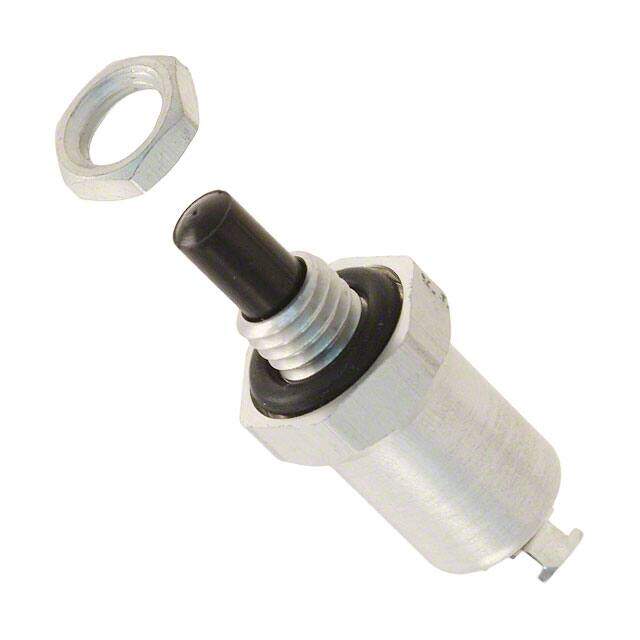

39-352 BLK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 0.25A 115V
PDF
/
Buying Options
Total Price: USD $16.37
Unit Price: USD $16.368
≥1 USD $16.368
≥10 USD $14.67136
≥100 USD $12.81764
Inventory: 69
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Electrical Life 100,000 Cycles
Sealing EPOXY TERMINAL SEALED
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 4.37mm Dia
Switch Function On-Mom
Circuit SPST-NC
Actuator Type Round, Plunger
Voltage - Rated AC 115V
Termination Style Solder Lug
Current Rating (Amps) 250mA AC
HTS Code 8536.50.70.00
Type Standard
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Sealed - Fully
Series 39
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Surface Mount NO
Mounting Type Panel Mount, Rear
Supply Chain
Factory Lead Time 16 Weeks
Alternative Model
