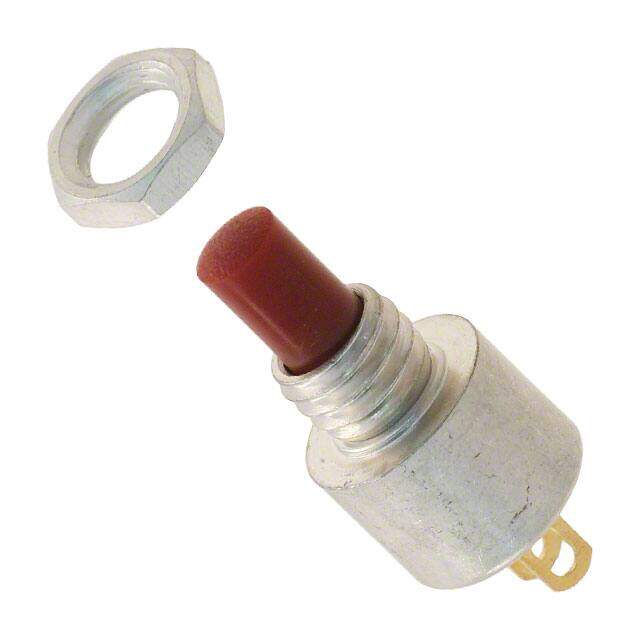

39-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Push Button N.O. SPST Button 0.5A 220VAC Momentary Contact Solder Lug Panel Mount
PDF
/
Buying Options
Total Price: USD $6.73
Unit Price: USD $6.732
≥1 USD $6.732
≥10 USD $6.04912
≥100 USD $5.769632
≥500 USD $5.521472
≥1000 USD $5.304288
≥3000 USD $5.025082
Inventory: 1090
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Aluminium
Actuator Material Plastic, Thermoset
Center Contact Material SILVER
Terminal Material BRONZE
End Contact Material SILVER
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series 39
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
HTS Code 8536.50.70.00
Current Rating (Amps) 500mA AC
Orientation Straight
Depth 6.35mm
Current Rating 500mA
Termination Style Solder Lug
Voltage - Rated AC 115V
Approval Agency CSA, UL
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 4.37mm Dia
Contact Resistance 25mOhm
Insulation Resistance 1.022GOhm
Color - Actuator/Cap Red
Max Voltage Rating (AC) 220V
Max Current Rating 500mA
Electrical Life 1,000,000 Cycles
Number of Poles 1
Throw Configuration SPST
Contact Current Rating 500mA
Contact Current(AC)-Max 0.5A
Contact Function OFF-(ON)
Operating Force-Max 2.22 N
Dimensions
Diameter 6.35 mm
Height 15.494mm
Length 6.35mm
Actuator Length 4.45mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
