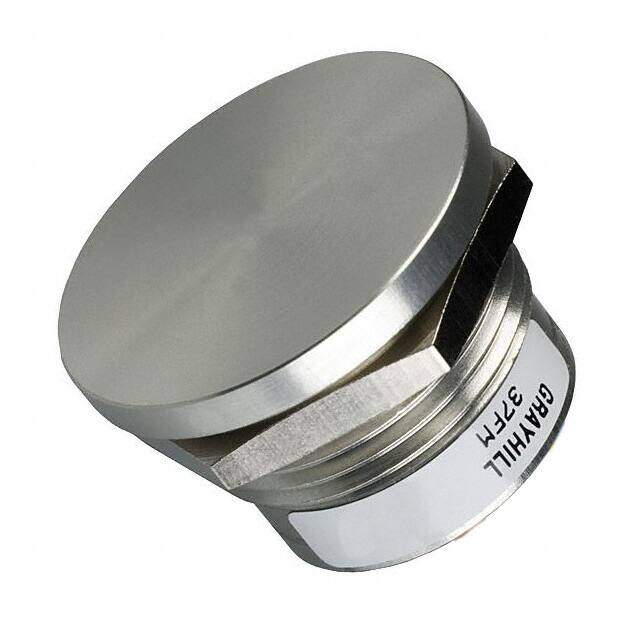

37FMA1-AAP1N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.2A 24V
PDF
/
Inventory: 4781
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP68, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Body Height 19mm
Technical
Contact Current Rating 1.2A
Mechanical Life 50,000,000 Cycles
Max Voltage Rating (DC) 24V
Throw Configuration SPST
Electrical Life 50,000,000 Cycles
Max Current Rating 200mA
Max Voltage Rating (AC) 24V
Color - Actuator/Cap Natural
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button, Flush
Voltage - Rated AC 24V
Termination Style PC Pin
Current Rating 200mA
Ingress Protection IP68 - Dust Tight, Waterproof
Orientation Vertical
Current Rating (Amps) 200mA AC/DC
Voltage - Rated DC 24V
HTS Code 8536.50.90.33
Type Piezo, Anti-Vandal
ECCN Code EAR99
Termination PC Pin
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Sealed - Fully
Series 37F
Published 2002
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Housing Material Aluminium
Mounting Type Panel Mount, Front
Mount Front, Panel, Through Hole
Supply Chain
Factory Lead Time 18 Weeks
