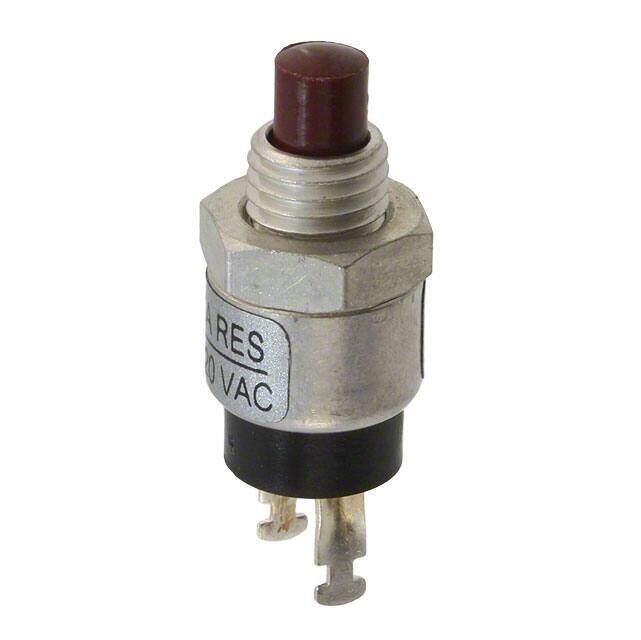

30-6UL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 5A 120V
PDF
/
Buying Options
Total Price: USD $7.64
Unit Price: USD $7.6384
≥1 USD $7.6384
≥10 USD $6.86312
≥100 USD $6.018584
≥500 USD $5.033098
Inventory: 97
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Actuator Length 3.81mm
Length 9.53mm
Technical
Operating Force-Max 3.34 N
Contact Function (ON)-OFF
Contact (AC) Max Rating R Load 5A@120VAC
Contact Current(AC)-Max 5A
Throw Configuration SPST
Electrical Life 6,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Max Current Rating 5A
Max Voltage Rating (AC) 220V
Color - Actuator/Cap Red
Insulation Resistance 1000000000Ohm
Contact Resistance 25mOhm
Panel Cutout Dimensions Circular - 6.75mm Dia
Switch Function On-Mom
Circuit SPST-NC
Actuator Type Round, Plunger
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 5A
Depth 9.53mm
Orientation Straight
Current Rating (Amps) 5A AC
HTS Code 8536.50.70.00
Additional Feature SEALED BUSHING AND BUTTON, UL
Terminal Finish Silver (Ag)
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 30
Published 2010
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
End Contact Plating GOLD
End Contact Material BRASS
Terminal Material BRASS
Center Contact Material BRASS
Center Contact Plating SILVER
Actuator Material Phenolic
Housing Material Plastic
Mounting Type Panel Mount, Rear
Mount Panel
Supply Chain
Factory Lead Time 16 Weeks
