30-32 BLK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

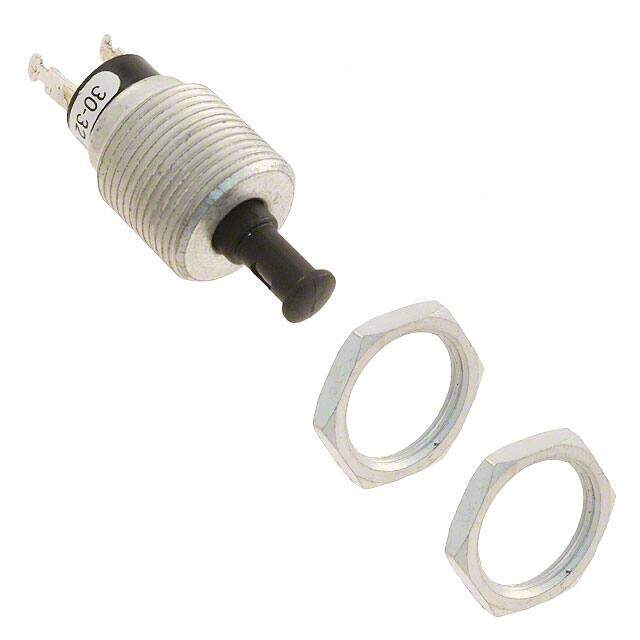

SWITCH PUSH SPST-NC 1A 115V
PDF
/
Inventory: 9940
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Panel Mount, Rear
Surface Mount NO
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2010
Series 30
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Standard
HTS Code 8536.50.70.00
Current Rating (Amps) 1A AC
Termination Style Solder Lug
Voltage - Rated AC 115V
Actuator Type Round, Plunger
Circuit SPST-NC
Switch Function On-Off
Panel Cutout Dimensions Circular - 12.30mm Dia
Color - Actuator/Cap Black
Electrical Life 100,000 Cycles
Compliance
RoHS Status RoHS Compliant
Alternative Model
