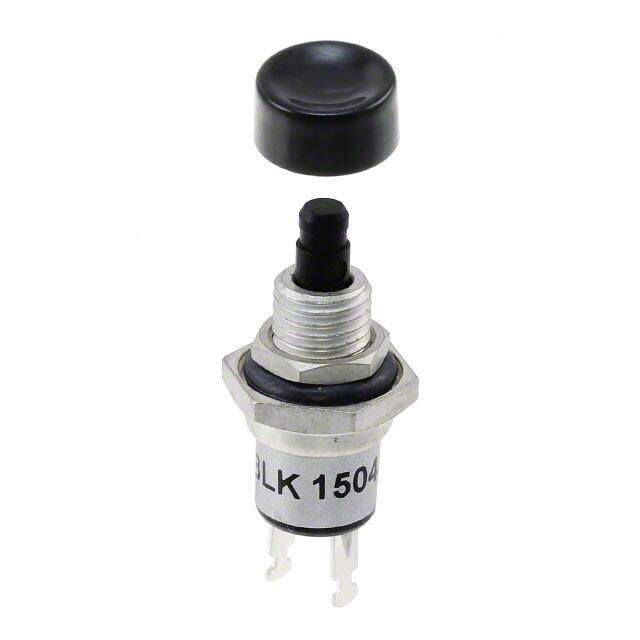

30-251 BLK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 1A 115V
PDF
/
Buying Options
Total Price: USD $15.43
Unit Price: USD $15.4264
≥1 USD $15.4264
≥10 USD $13.83096
≥100 USD $12.082752
Inventory: 507
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Panel Mount, Rear
Surface Mount NO
Mounting Feature PANEL MOUNT-THREADED
Insulation Material THERMOPLASTIC
Housing Material CADMIUM
Actuator Material POLYESTER
Center Contact Plating SILVER
Center Contact Material BRASS
Terminal Material BRASS
End Contact Material BRASS
End Contact Plating GOLD
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2000
Series 30
JESD-609 Code e4
Feature Sealed - Fully
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Standard
Terminal Finish Silver (Ag)
Additional Feature SEALED BUSHING AND BUTTON
HTS Code 8536.50.70.00
Current Rating (Amps) 1A AC
Termination Style Solder Lug
Voltage - Rated AC 115V
Body Length or Diameter 11.1mm
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 6.75mm Dia
Contact Resistance 0.025mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Sealing BUSHING AND BUTTON SEALED
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 250,000 Cycles
Contact Current(AC)-Max 1A
Contact Voltage(AC)-Max 115V
Contact Function OFF-(ON)
Actuator Travel 1.5748 mm
Bushing Length 0.25 inch
Operating Force-Max 10.56 N
Bushing Diameter 0.25 inch
Dimensions
Body Height 10.41mm
Length - Termination 0.222 inch
Actuator Length 0.209 inch
Compliance
RoHS Status RoHS Compliant
