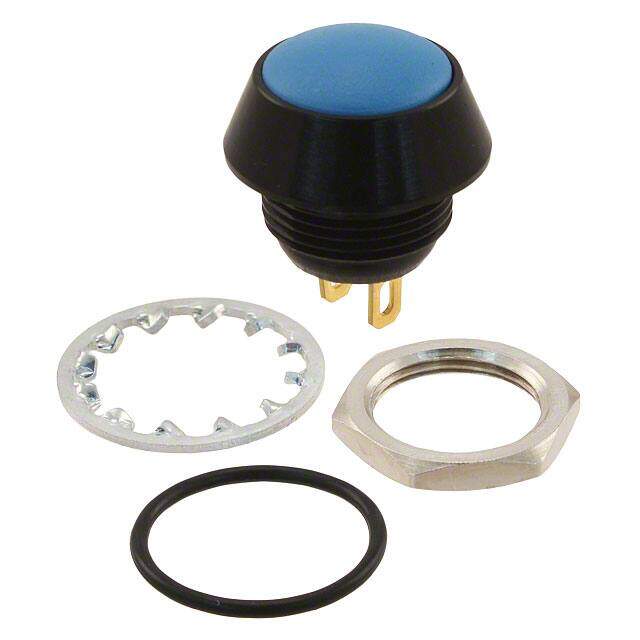

30-205 image
Favorite
30-205 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.15A 24V
PDF
/
Inventory: 7949
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant

Dimensions

Actuator Length 2.02mm
Body Height 7.58mm

Technical

Contact (DC) Max Rating R Load .15A@24VDC
Mechanical Life 500,000 Cycles
Max Voltage Rating (DC) 24V
Throw Configuration SPST
Electrical Life 500,000 Cycles
Sealing IP65
Contact Current(DC)-Max 0.15A
Color - Actuator/Cap Blue
Panel Cutout Dimensions Circular - 13.46mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Body Length or Diameter 17.53mm
Termination Style Solder Lug
Current Rating 150mA
Orientation Straight
Current Rating (Amps) 150mA DC
Voltage - Rated DC 24V
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Aluminum Housing
JESD-609 Code e4
Series 30
Published 2000
Packaging Bulk
Operating Temperature -40°C~80°C

Physical

Actuator Material Glass, Nylon
Housing Material Aluminium
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold

Supply Chain

Factory Lead Time 16 Weeks
