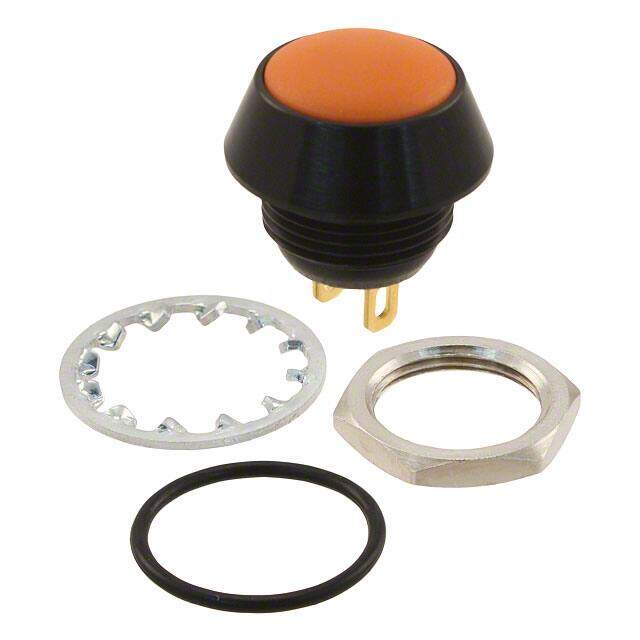

30-204
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.15A 24V
PDF
/
Buying Options
Total Price: USD $14.82
Unit Price: USD $14.818446
≥1 USD $14.818446
≥10 USD $13.979667
≥100 USD $13.188361
≥500 USD $12.441856
≥1000 USD $11.737601
Inventory: 1118
Minimum: 1
-
+
Technical Details
Technical
Voltage - Rated 24V
HTS Code 8536.50.90.31
Voltage - Rated DC 24V
Current Rating (Amps) 150mA DC
Orientation Straight
Current Rating 150mA
Termination Style Solder Lug
Body Length or Diameter 17.53mm
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 13.46mm Dia
Color - Actuator/Cap Orange
Contact Current(DC)-Max 0.15A
Sealing IP65
Electrical Life 500,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 24V
Mechanical Life 500,000 Cycles
Contact Current Rating 150mA
Contact Voltage Rating (DC) 24V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Aluminum Housing
JESD-609 Code e4
Series 30
Published 2011
Packaging Bulk
Operating Temperature -40°C~80°C
Dimensions
Body Height 7.58mm
Actuator Length 2.02mm
Compliance
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
Physical
Actuator Material Glass, Nylon
Housing Material Aluminium
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold
Contact Material Brass, Gold
Supply Chain
Factory Lead Time 16 Weeks
