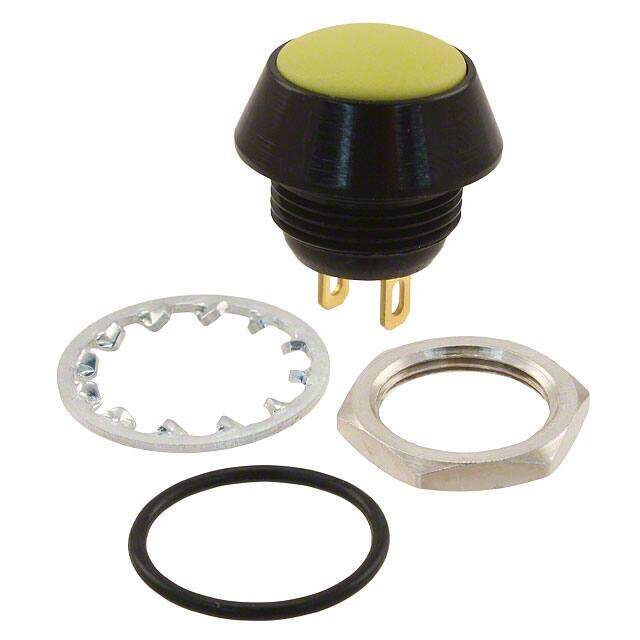

30-203
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.15A 24V
PDF
/
Buying Options
Total Price: USD $18.53
Unit Price: USD $18.5328
≥1 USD $18.5328
≥10 USD $16.83352
≥100 USD $16.076544
≥500 USD $15.225584
≥1000 USD $14.658072
≥3000 USD $13.712406
Inventory: 117
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Dimensions
Body Height 7.58mm
Technical
Contact Voltage Rating (DC) 24V
Contact Current Rating 150mA
Mechanical Life 500,000 Cycles
Max Voltage Rating (DC) 24V
Throw Configuration SPST
Electrical Life 500,000 Cycles
Sealing IP65
Contact Current(DC)-Max 0.15A
Color - Actuator/Cap Yellow
Panel Cutout Dimensions Circular - 13.46mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Body Length or Diameter 17.53mm
Termination Style Solder Lug
Current Rating 150mA
Current Rating (Amps) 150mA DC
Voltage - Rated DC 24V
HTS Code 8536.50.90.31
Voltage - Rated 24V
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Aluminum Housing
JESD-609 Code e4
Series 30
Published 2011
Packaging Bulk
Operating Temperature -40°C~80°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Material Brass, Gold
Supply Chain
Factory Lead Time 16 Weeks
