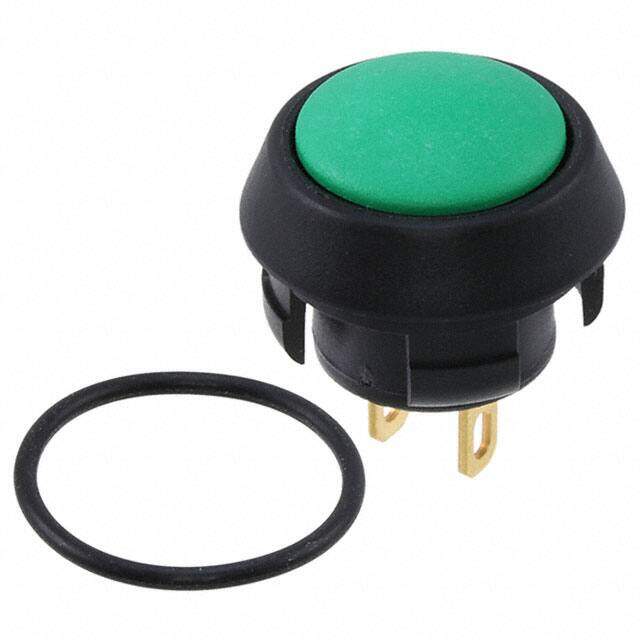

30-102
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.15A 24V
PDF
/
Buying Options
Total Price: USD $6.34
Unit Price: USD $6.3448
≥1 USD $6.3448
≥10 USD $5.71648
≥100 USD $5.476768
≥500 USD $5.269088
Inventory: 661
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 2.03mm
Length 17.53mm
Diameter 17.5mm
Technical
Contact Current(AC)-Max 1A
Contact Current Rating 150mA
Mechanical Life 500,000 Cycles
Max Voltage Rating (DC) 24V
Throw Configuration SPST
Number of Poles 1
Electrical Life 500,000 Cycles
Max Current Rating 150mA
Sealing EPOXY TERMINAL SEALED
Color - Actuator/Cap Green
Insulation Resistance 1.027GOhm
Contact Resistance 25mOhm
Panel Cutout Dimensions Circular - 15.20mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Approval Agency CSA, UL
Termination Style Solder Lug
Current Rating 150mA
Depth 17.53mm
Orientation Straight
Current Rating (Amps) 150mA DC
Voltage - Rated DC 24V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Sealed - Fully
JESD-609 Code e4
Series 30
Published 2004
Packaging Bulk
Operating Temperature -40°C~80°C
Physical
Actuator Material Glass, Nylon
Housing Material Nylon
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Supply Chain
Factory Lead Time 16 Weeks
