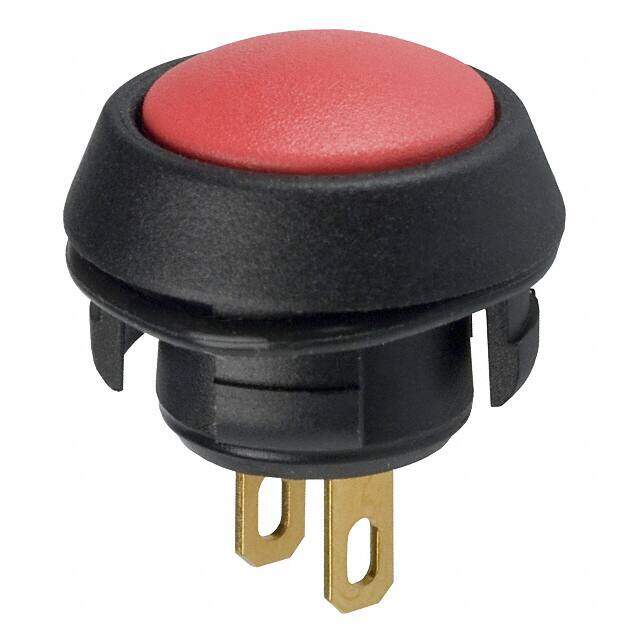

30-101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.15A 24V
PDF
/
Buying Options
Total Price: USD $8.98
Unit Price: USD $8.9848
≥1 USD $8.9848
≥10 USD $8.09776
≥100 USD $7.758432
≥500 USD $7.376864
≥1000 USD $7.080128
≥3000 USD $6.656144
Inventory: 388
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Plating Gold
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Nylon
Actuator Material Glass, Nylon
Technical
Operating Temperature -40°C~80°C
Packaging Bulk
Published 2004
Series 30
JESD-609 Code e4
Feature Sealed - Fully
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Voltage - Rated DC 24V
Current Rating (Amps) 150mA DC
Orientation Straight
Depth 17.53mm
Current Rating 150mA
Termination Style Solder Lug
Approval Agency CSA, UL
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 15.20mm Dia
Contact Resistance 25mOhm
Insulation Resistance 1.026GOhm
Color - Actuator/Cap Red
Sealing EPOXY TERMINAL SEALED
Max Current Rating 150mA
Electrical Life 500,000 Cycles
Number of Poles 1
Throw Configuration SPST
Max Voltage Rating (DC) 24V
Mechanical Life 500,000 Cycles
Contact Current Rating 150mA
Contact Current(AC)-Max 1A
Dimensions
Diameter 17.5mm
Length 17.53mm
Actuator Length 2.03mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
