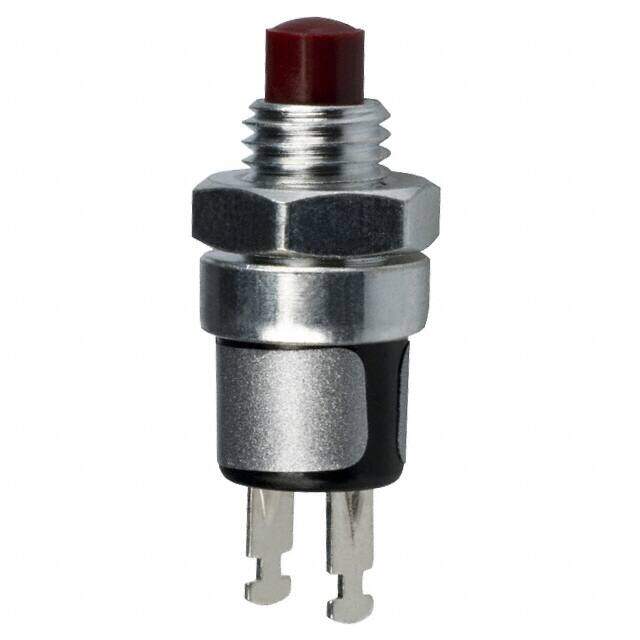

30-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 1A 115V
PDF
/
Buying Options
Total Price: USD $6.5
Unit Price: USD $6.5032
≥1 USD $6.5032
≥10 USD $5.85464
≥100 USD $5.560192
≥500 USD $5.32488
≥1000 USD $5.148352
≥3000 USD $4.883613
Inventory: 124
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Brass, Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Plastic
Actuator Material Polycarbonate
End Contact Plating GOLD
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series 30
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Terminal Finish Silver (Ag)
Voltage - Rated 220V
HTS Code 8536.50.70.00
Current Rating (Amps) 1A AC
Orientation Straight
Depth 9.53mm
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 115V
Approval Agency CSA, UL
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 6.75mm Dia
Contact Resistance 25mOhm
Insulation Resistance 1.018GOhm
Color - Actuator/Cap Red
Max Voltage Rating (AC) 220V
Max Current Rating 1A
Electrical Life 1,000,000 Cycles
Number of Poles 1
Throw Configuration SPST
Contact Current Rating 1A
Contact Current(AC)-Max 1A
Contact Function OFF-(ON)
Operating Force-Max 3.89 N
Contact Voltage Rating (AC) 220V
Contact Voltage Rating (DC) 20V
Dimensions
Diameter 9.53mm
Length 9.53mm
Body Height 9.4mm
Actuator Length 3.81mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
