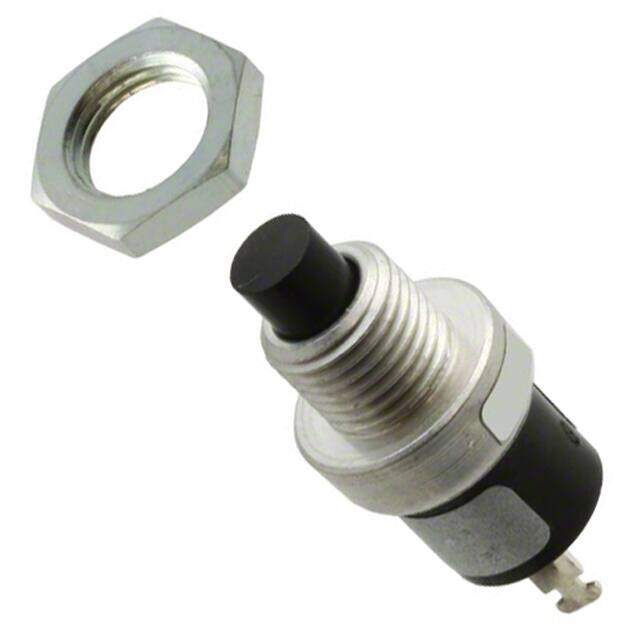

23-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.25A 115V
PDF
/
Buying Options
Total Price: USD $12.33
Unit Price: USD $12.3288
≥1 USD $12.3288
≥10 USD $11.13552
≥100 USD $10.599776
≥500 USD $10.063856
≥1000 USD $9.706576
≥3000 USD $9.111098
Inventory: 50
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Actuator Length 3.71mm
Length - Termination 0.187 inch
Body Height 12.09mm
Technical
Operating Force-Max 5.56 N
Bushing Length 0.25 inch
Contact Function ON-(OFF)
Contact Timing MAKE-BEFORE-BREAK
Contact (AC) Max Rating R Load .25A@115VAC
Contact Current(AC)-Max 0.25A
Mechanical Life 100,000 Cycles
Throw Configuration SPST
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Max Current Rating 250mA
Max Voltage Rating (AC) 220V
Sealing EPOXY
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 25mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Body Length or Diameter 11.89mm
Voltage - Rated AC 115V
Termination Style Solder Lug
Current Rating 250mA
Orientation Straight
Current Rating (Amps) 250mA AC
HTS Code 8536.50.70.00
Additional Feature MOUNTING NUT & COVER BUSHING
Terminal Finish Silver (Ag)
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 23
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
End Contact Plating SILVER
End Contact Material PHOSPHOR BRONZE
Terminal Material BRASS
Center Contact Material PHOSPHOR BRONZE
Center Contact Plating SILVER
Actuator Material Polycarbonate
Housing Material Phenolic
Mounting Type Panel Mount, Rear
Mount Panel
Supply Chain
Factory Lead Time 16 Weeks
