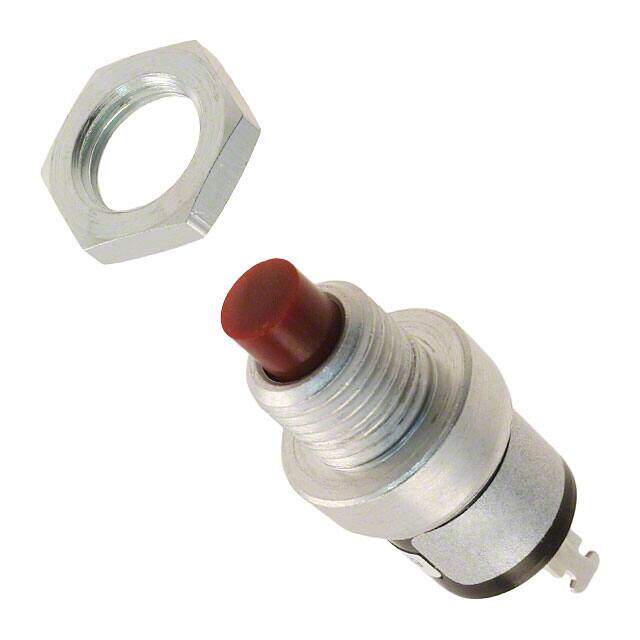

23-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.25A 115V
PDF
/
Buying Options
Total Price: USD $12.33
Unit Price: USD $12.3288
≥1 USD $12.3288
≥10 USD $11.13552
≥100 USD $10.599776
≥500 USD $10.063856
≥1000 USD $9.706576
≥3000 USD $9.111098
Inventory: 110
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Actuator Length 3.71mm
Length 22.1mm
Diameter 11.9 mm
Technical
Contact Voltage Rating (AC) 220V
Operating Force-Max 5.56 N
Contact Function ON-(OFF)
Contact Timing MAKE-BEFORE-BREAK
Contact Current(AC)-Max 0.25A
Contact Current Rating 250mA
Mechanical Life 100,000 Cycles
Throw Configuration SPST
Number of Poles 1
Electrical Life 100,000 Cycles
Max Current Rating 250mA
Max Voltage Rating (AC) 220V
Sealing EPOXY
Color - Actuator/Cap Red
Insulation Resistance 1GOhm
Contact Resistance 25mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Approval Agency CSA, UL
Voltage - Rated AC 115V
Termination Style Solder Lug
Current Rating 250mA
Orientation Straight
Current Rating (Amps) 250mA AC
HTS Code 8536.50.70.00
Additional Feature MOUNTING NUT & COVER BUSHING
Voltage - Rated 220V
Terminal Finish Silver (Ag)
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 23
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Actuator Material Polycarbonate
Housing Material Phenolic
Mounting Type Panel Mount, Rear
Mount Panel
Contact Material Brass, Bronze, Silver
Supply Chain
Factory Lead Time 16 Weeks
