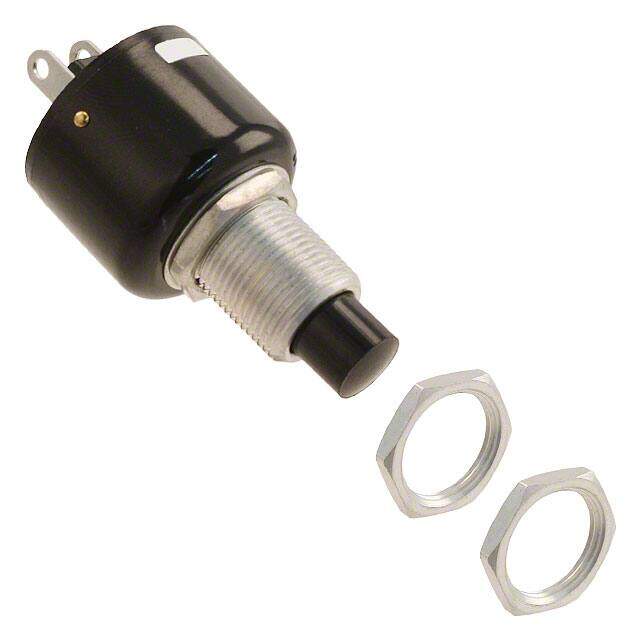

2202
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 10A 115V
PDF
/
Buying Options
Total Price: USD $39.42
Unit Price: USD $39.4152
≥1 USD $39.4152
Inventory: 29
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Plastic
Actuator Material Plastic, Thermoset
Terminal Material BRASS
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series 2000
JESD-609 Code e3
Feature Audible Click
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Terminal Finish Tin (Sn)
HTS Code 8536.50.70.00
Current Rating (Amps) 10A AC
Orientation Straight
Depth 22.35mm
Current Rating 10A
Termination Style Solder Lug
Voltage - Rated AC 115V
Approval Agency CSA, UL
Actuator Type Round, Plunger
Circuit SPST-NC
Switch Function On-Mom
Contact Resistance 0.025mOhm
Insulation Resistance 1.014GOhm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 220V
Max Current Rating 10A
Electrical Life 25,000 Cycles
Number of Poles 1
Throw Configuration SPST
Mechanical Life 25,000 Cycles
Contact Current Rating 10A
Contact Timing QUICK-MAKE/-BREAK
Contact Function ON-(OFF)
Operating Force-Max 6.67 N
Dimensions
Length 22.35mm
Body Height 20.22mm
Actuator Length 6.93mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
