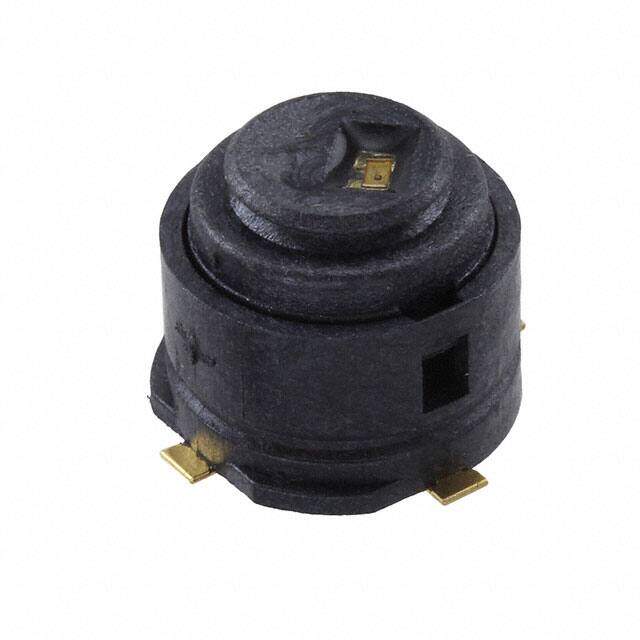

14AP-L1-02-Y
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch,Tactile; SPST; Off (On); 1NO; 100mA30VDC; Yellow LED; Unsealed; SMT
PDF
/
Buying Options
Total Price: USD $14.5
Unit Price: USD $14.5024
≥1 USD $14.5024
≥10 USD $13.00552
≥100 USD $12.434048
≥500 USD $11.790768
≥1000 USD $11.362032
Inventory: 416
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Surface Mount
Surface Mount NO
Insulation Material THERMOPLASTIC
Actuator Material THERMOPLASTIC
Center Contact Plating GOLD
Center Contact Material BERYLLIUM COPPER
Terminal Material BERYLLIUM COPPER
End Contact Material BERYLLIUM COPPER
End Contact Plating GOLD
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2015
Series 14
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Keyswitch, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 100mA DC
Termination Style SMD (SMT) Tab
Body Length or Diameter 11.938mm
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 0.05mOhm
Insulation Resistance 10000000000Ohm
Color - Actuator/Cap Clear
Contact Current(DC)-Max 0.1A
Illumination Voltage (Nominal) 2VDC
Illumination Type, Color LED, Yellow
Contact Voltage(DC)-Max 30V
Dielectric Withstanding Voltage 500VAC V
Electrical Life 200,000 Cycles
Mechanical Life 200,000 Cycles
Actuator Travel 1.524 mm
Compliance
RoHS Status RoHS Compliant
