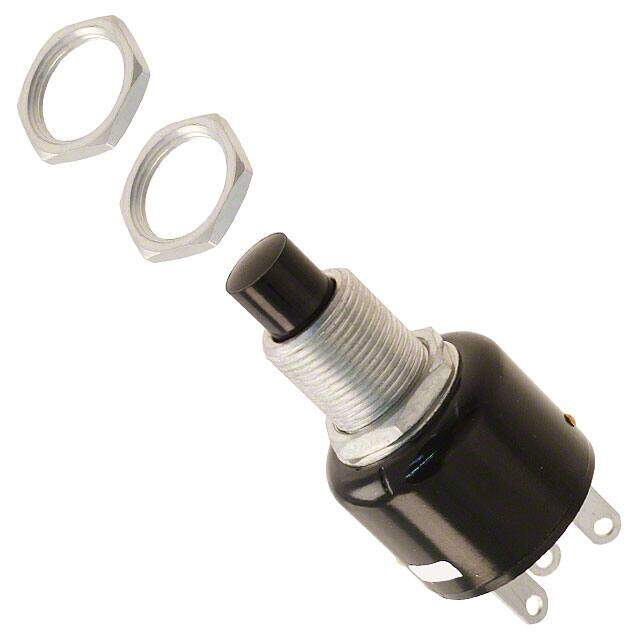

07-26 BLK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 10A 115V
PDF
/
Buying Options
Total Price: USD $50.98
Unit Price: USD $50.975574
≥1 USD $50.975574
≥10 USD $48.090165
≥100 USD $45.368076
≥500 USD $42.800078
≥1000 USD $40.377435
Inventory: 1411
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length - Termination 0.443 inch
Body Height 20.22mm
Technical
Bushing Length 0.454 inch
Actuator Travel 1.651 mm
Contact Function ON-(ON)
Contact Voltage(AC)-Max 115V
Contact Timing BREAK-BEFORE-MAKE
Contact Current(AC)-Max 10A
Mechanical Life 25,000 Cycles
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.025mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger
Body Length or Diameter 22.35mm
Voltage - Rated AC 115V
Termination Style Solder Lug
Current Rating (Amps) 10A AC
Additional Feature AUDIBLE CLICK
Terminal Finish Tin (Sn)
Type Standard
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series 7
Published 2008
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
End Contact Plating SILVER
End Contact Material BERYLLIUM COPPER
Terminal Material BRASS
Center Contact Material BERYLLIUM COPPER
Center Contact Plating SILVER
Actuator Material THERMOPLASTIC
Housing Material THERMOPLASTIC
Mounting Feature PANEL MOUNT-THREADED
Surface Mount NO
Mounting Type Panel Mount, Rear
Supply Chain
Factory Lead Time 16 Weeks
