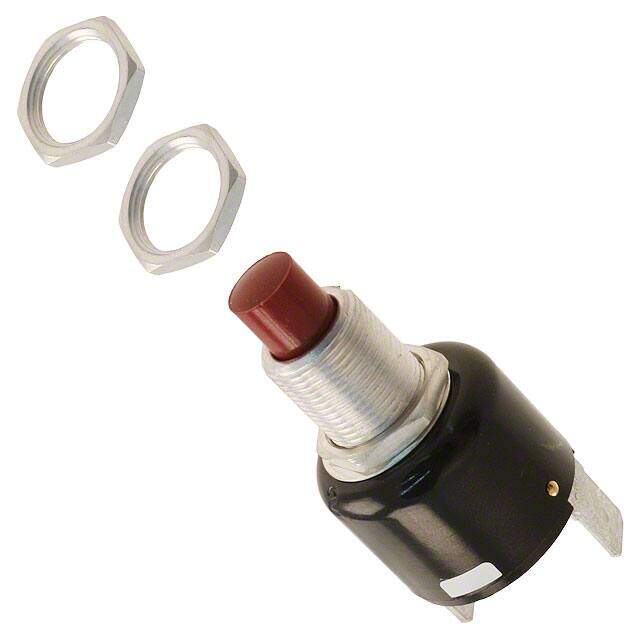

07-21
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 10A 115V
PDF
/
Buying Options
Total Price: USD $52.01
Unit Price: USD $52.008
≥1 USD $52.008
≥10 USD $47.388
≥100 USD $44.209088
≥500 USD $42.475488
≥1000 USD $39.586008
Inventory: 107
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Actuator Length 6.93mm
Body Height 20.22mm
Length 22.35mm
Technical
Contact Voltage Rating (AC) 220V
Contact Function OFF-(ON)
Contact Timing QUICK-MAKE/-BREAK
Contact Current Rating 10A
Mechanical Life 25,000 Cycles
Throw Configuration SPST
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Max Current Rating 10A
Max Voltage Rating (AC) 220V
Color - Actuator/Cap Red
Insulation Resistance 1000000000Ohm
Contact Resistance 0.025mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Voltage - Rated AC 115V
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating 10A
Depth 22.35mm
Orientation Straight
Current Rating (Amps) 10A AC
Additional Feature AUDIBLE CLICK
Voltage - Rated 220V
Terminal Finish Tin (Sn)
Type Standard
ECCN Code EAR99
Termination Faston
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series 7
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Terminal Material BRASS
Actuator Material Plastic, Thermoset
Housing Material Plastic
Mounting Type Panel Mount, Rear
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 16 Weeks
