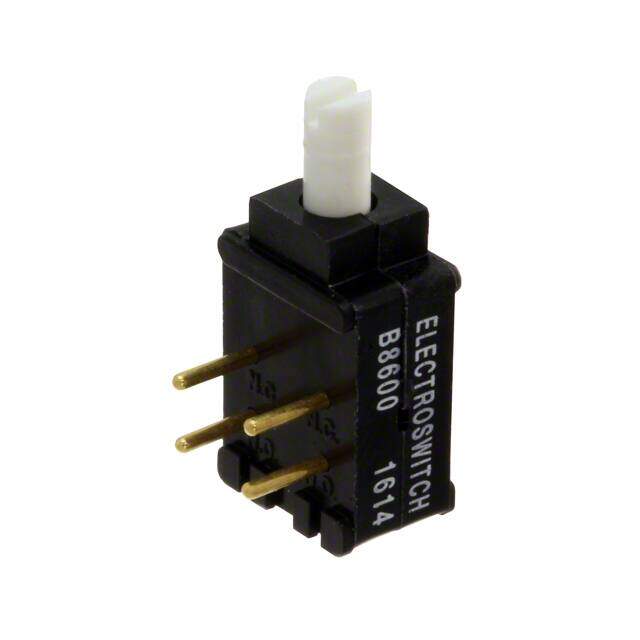

B8600
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch, Pushbutton;PCB SubMiniature;Momentary;2 Circuits;1 A@6VDC/12VDC;Solder T.
PDF
/
Buying Options
Total Price: USD $10.77
Unit Price: USD $10.76578
≥1 USD $10.76578
≥200 USD $4.165832
≥500 USD $4.0201
≥1000 USD $3.94789
Inventory: 8856
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Weight 1.7g
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2001
Series B8000
Part Status Active
Termination PC Pin
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Voltage - Rated DC 28V
Current Rating (Amps) 500mA DC
Orientation Right Angle
Current Rating 500mA
Termination Style PC Pin
Voltage - Rated AC 125V
Body Breadth 9.52 mm
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-Mom
Contact Resistance 25mOhm
Contact Current(DC)-Max 1A
Electrical Life 100,000 Cycles
Max Voltage Rating (DC) 125V
Mechanical Life 500,000 Cycles
Contact (DC) Max Rating R Load 1A@12VDC
Dimensions
Height 6.35mm
Length 15.6mm
Actuator Length 5.1mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
