84-5040.0020
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

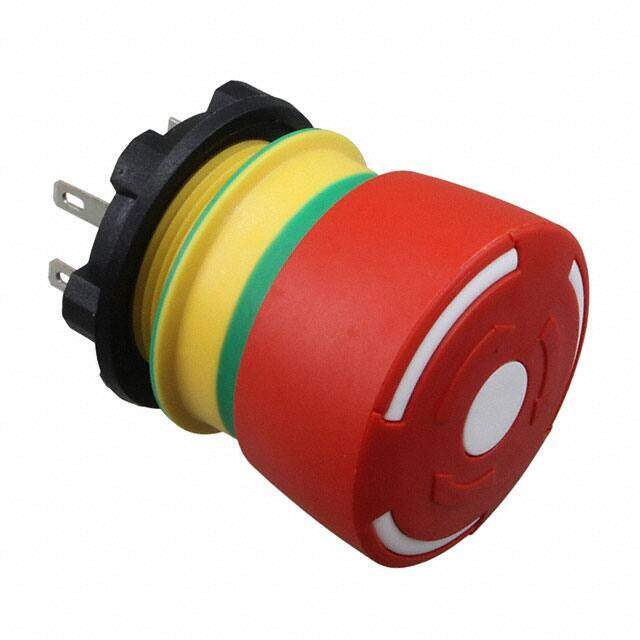

EAO 84-5040.0020 Industrial Pushbutton Switch, DPST, On-Off, Quick Connect, Solder, 3 A, 240 V, 42 V
PDF
/
Buying Options
Total Price: USD $35.53
Unit Price: USD $35.5256
≥1 USD $35.5256
≥10 USD $32.38928
≥100 USD $29.74576
≥500 USD $27.266976
≥1000 USD $25.614512
≥3000 USD $23.961872
Inventory: 883
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -25°C~65°C
Packaging Bulk
Series 84
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Plug
Type Emergency Stop
Number of Positions 2
Color Black
Current Rating (Amps) 5A AC/DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Depth 9.5mm
Current Rating 200mA
Termination Style Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 42V
Approval Agency EN, IEC
Actuator Type Round, Button
Operating Supply Voltage 250V
Circuit DPST-NC
Switch Function On-Off
Panel Cutout Dimensions Circular - 22.30mm Dia
Color - Actuator/Cap Red
Electrical Life 50,000 Cycles
Nominal Supply Current 3A
Throw Configuration DPST
Mechanical Life 50,000 Cycles
Contact Current Rating 5A
Actuator Diameter 32 mm
Head Diameter 32 mm
Dimensions
Actuator Length 300mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings IP65
