82-6151.1114
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

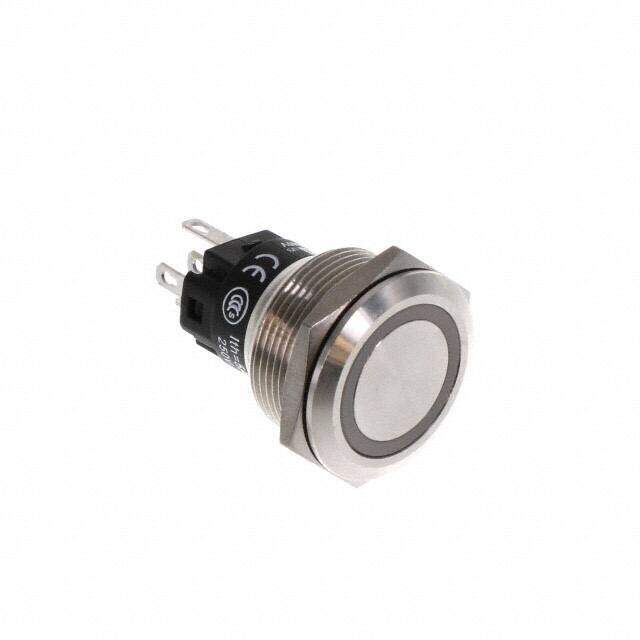

Pushbutton illuminated stainless steel 22 mm 250 VAC 3 A 1 NO+1 NC, 82-6151.1114, EAO
PDF
/
Buying Options
Total Price: USD $25.15
Unit Price: USD $25.1504
≥1 USD $25.1504
≥10 USD $22.8404
≥100 USD $21.813792
≥500 USD $20.65888
≥1000 USD $19.888968
≥3000 USD $18.60584
Inventory: 173
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Flush
Mounting Type Panel Mount, Front
Housing Material Stainless Steel
Technical
Operating Temperature -30°C~70°C
Packaging Bulk
Series 82
Feature Stainless Steel
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Blade Terminal
Type Standard, Illuminated
Number of Positions 2
Current Rating (Amps) 3A AC/DC
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Current Rating 3A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 240V
Actuator Type Round, Button, Flush
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 22.30mm Dia
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 24VAC/DC
Illumination Type, Color LED, Red
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Contact Current Rating 5A
Operating Force 7 N
Illumination Type LED
Illumination Color Red
Dimensions
Diameter 25mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings IP67
