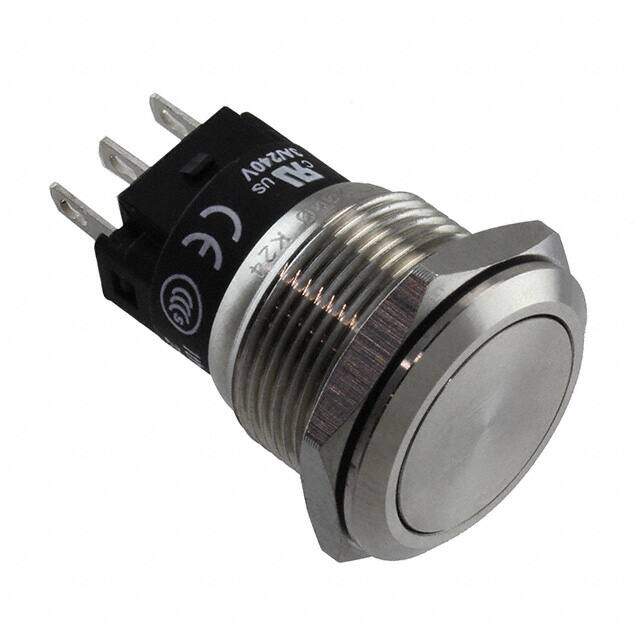

82-5151.11A4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 240V
PDF
/
Buying Options
Total Price: USD $26.44
Unit Price: USD $26.444
≥1 USD $26.444
≥10 USD $24.06272
≥100 USD $22.943008
≥500 USD $21.40424
≥1000 USD $20.564896
≥3000 USD $19.165907
Inventory: 57
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Illumination Type, Color LED, Red/Green
Illumination Voltage (Nominal) 24VAC/DC
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 19.00mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button, Flush
Voltage - Rated AC 240V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Current Rating (Amps) 3A AC/DC
Number of Positions 2
Type Standard, Illuminated
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Stainless Steel
Series 82
Packaging Bulk
Operating Temperature -30°C~70°C
Physical
Mounting Type Panel Mount, Front
Supply Chain
Factory Lead Time 8 Weeks
