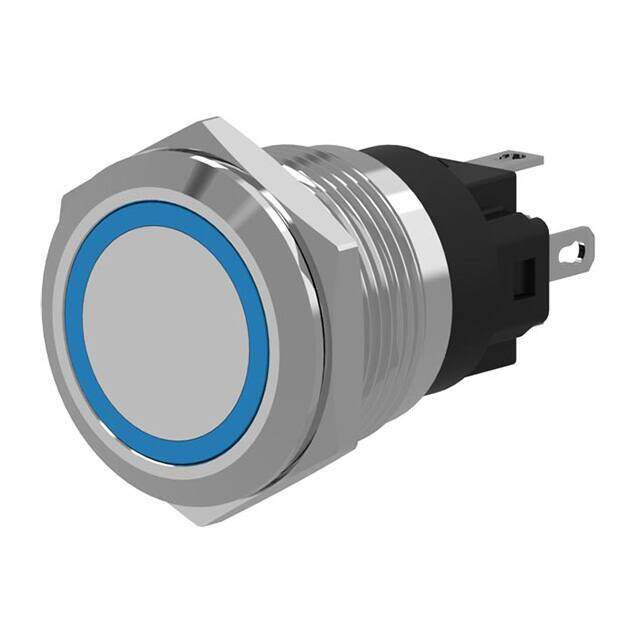

82-4151.1114
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch,Pushbtn; Mom.; 250VAC,5A; Red 24VLED Ring, Flush; SS; 16mm Mnt; Sldr tabs
PDF
/
Buying Options
Total Price: USD $21.6
Unit Price: USD $21.604
≥1 USD $21.604
≥10 USD $19.61608
≥100 USD $18.734496
≥500 USD $17.74256
≥1000 USD $17.081328
≥3000 USD $15.979322
Inventory: 77
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP67
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Diameter 18mm
Technical
Illumination Color Red
Illumination Type LED
Operating Force 7 N
Contact Current Rating 5A
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 24VAC/DC
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button, Flush
Voltage - Rated AC 240V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Current Rating (Amps) 3A AC/DC
Number of Positions 2
Type Standard, Illuminated
Termination Blade Terminal
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Stainless Steel
Series 82
Packaging Bulk
Operating Temperature -30°C~70°C
Physical
Housing Material Stainless Steel
Mounting Type Panel Mount, Front
Mount Panel
Supply Chain
Factory Lead Time 8 Weeks
