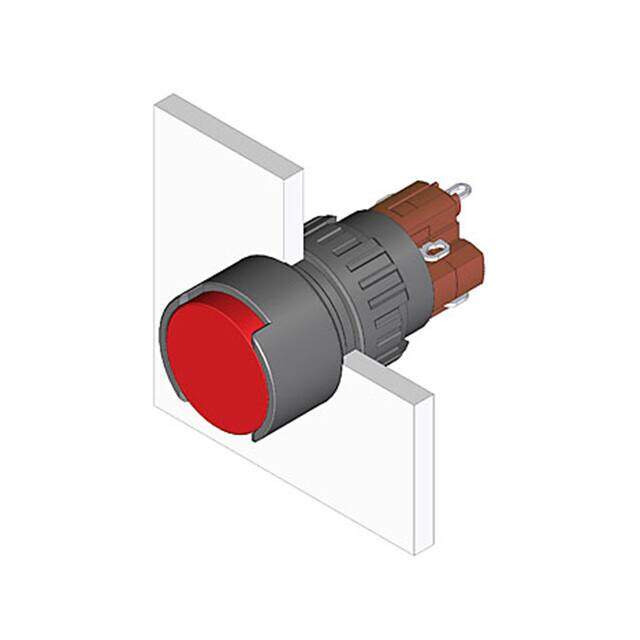

51-271.025
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Actuator;Switch;P/B;Raised;1NC+1NO;MAINT;Round;18mm;Illum;16mm;5A;250VAC;Solder
PDF
/
Buying Options
Total Price: USD $37.74
Unit Price: USD $37.7432
≥1 USD $37.7432
≥10 USD $34.35256
≥100 USD $32.754304
≥500 USD $30.557472
≥1000 USD $29.359176
≥3000 USD $27.361946
Inventory: 72
Minimum: 1
-
+
Technical Details
Technical
Actuator Type Round, Button (Not Included)
Circuit DPST-NO/NC
Switch Function On-Off, Off-On
Panel Cutout Dimensions Circular - 16.00mm Dia
Throw Configuration SPDT
Mechanical Life 1,000,000 Cycles
Contact Current Rating 5A
Voltage - Rated AC 250V
Termination Style Solder Lug
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 5A AC
Type Standard
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series 51
Packaging Bulk
Operating Temperature -25°C~55°C
Compliance
RoHS Status ROHS3 Compliant
Physical
Number of Pins 2
Mounting Type Panel Mount, Front
Supply Chain
Factory Lead Time 8 Weeks
