51-261.022
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

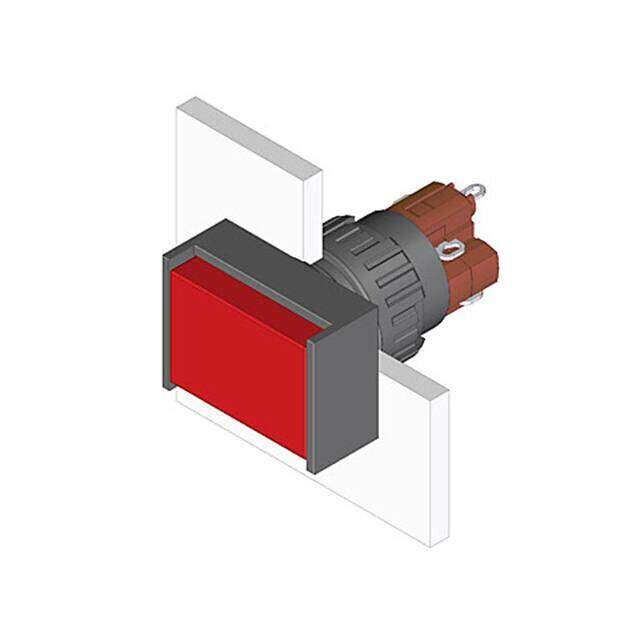

EAO 51-261.022 SWITCH, PUSHBUTTON SPDT-1NO/1NC 5A, 250V
PDF
/
Buying Options
Total Price: USD $38.25
Unit Price: USD $38.2536
≥1 USD $38.2536
≥10 USD $34.81368
≥100 USD $29.753768
Inventory: 114
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Gold, Silver
Mount Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -25°C~55°C
Packaging Bulk
Series 51
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Type Standard
Current Rating (Amps) 5A AC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 5A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 250V
Actuator Type Rectangular, Button (Not Included)
Circuit DPST-NO/NC
Switch Function On-Off, Off-On
Panel Cutout Dimensions Circular - 16.00mm Dia
Throw Configuration SPDT
Mechanical Life 1,000,000 Cycles
Contact Current Rating 5A
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings IP65
