51-122.025
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

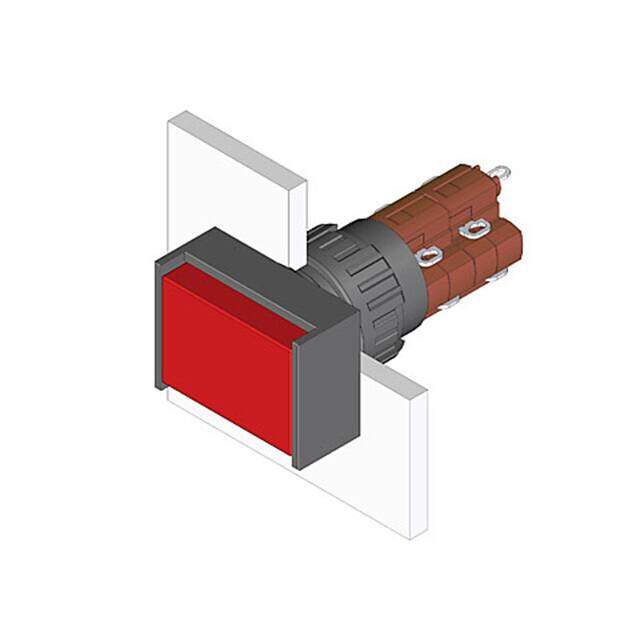

EAO 51-122.025 SWITCH, PUSHBUTTON DPDT-2NO/2NC 5A, 250V
PDF
/
Buying Options
Total Price: USD $58.9
Unit Price: USD $58.89996
≥1 USD $58.89996
≥10 USD $55.566
≥100 USD $52.420757
Inventory: 167
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Panel Mount, Front
Surface Mount NO
End Contact Plating GOLD OVER SILVER
Technical
Operating Temperature -25°C~55°C
Packaging Bulk
Series 51
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Standard
Current Rating (Amps) 5A AC
Ingress Protection IP65 - Dust Tight, Water Resistant
Termination Style Solder Lug
Voltage - Rated AC 250V
Actuator Type Rectangular, Button (Not Included)
Circuit 4PST-2NO/2NC
Switch Function On-Mom, Off-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Throw Configuration DPST
Mechanical Life 2,000,000 Cycles
Contact Current Rating 5A
Contact Current(AC)-Max 5A
Contact Timing SNAP ACTION
Contact Voltage(AC)-Max 250V
PCB Hole Count 9
Body Color BLACK
Dimensions
Actuator Length 0.413 inch
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
