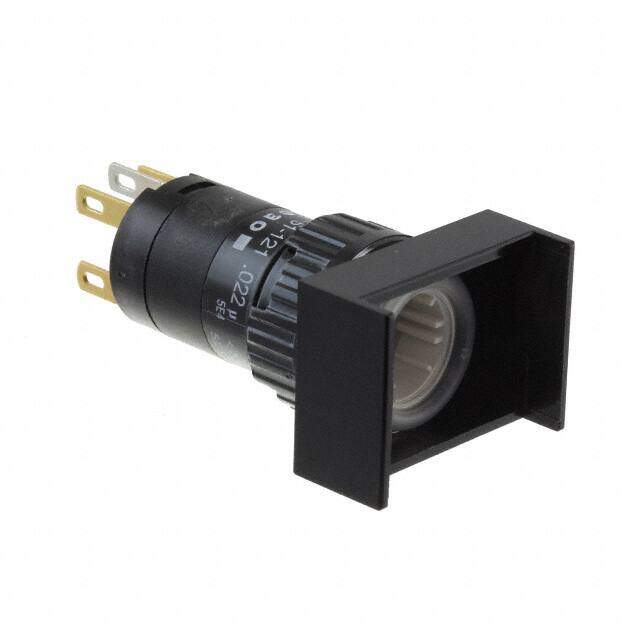

51-121.025
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
EAO 51-121.025 SWITCH, PUSHBUTTON SPDT-1NO/1NC 5A, 250V
PDF
/
Buying Options
Total Price: USD $32.55
Unit Price: USD $32.5512
≥1 USD $32.5512
≥10 USD $29.62256
≥100 USD $25.31672
Inventory: 95
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Silver
Mounting Type Panel Mount, Front
Surface Mount NO
Technical
Operating Temperature -25°C~55°C
Packaging Bulk
Series 51
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Standard
Current Rating (Amps) 5A AC
Ingress Protection IP65 - Dust Tight, Water Resistant
Termination Style Solder Lug
Voltage - Rated AC 250V
Actuator Type Rectangular, Button (Not Included)
Circuit DPST-NO/NC
Switch Function On-Mom, Off-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Throw Configuration SPDT
Mechanical Life 2,000,000 Cycles
Contact Current Rating 5A
Contact Current(AC)-Max 5A
Contact Timing SNAP ACTION
Contact Voltage(AC)-Max 250V
PCB Hole Count 9
Body Color BLACK
Dimensions
Actuator Length 0.413 inch
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings IP65
