31-451.036
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Switches / Pushbutton Switches
Description

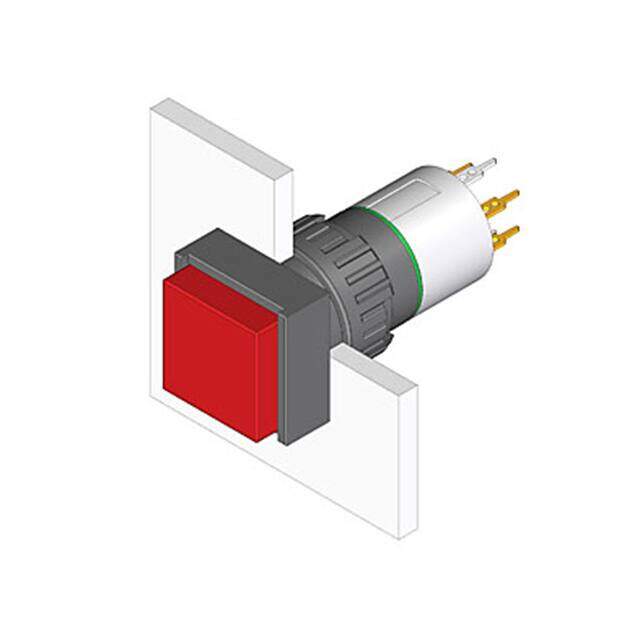

EAO 31-451.036 Illuminated Pushbutton Switch, 31 Series, DPDT-NO, Off-On, 100 mA, 42 V
PDF
/
Buying Options
Total Price: USD $25.95
Unit Price: USD $25.950319
≥1 USD $25.950319
≥10 USD $24.481433
≥100 USD $23.09569
≥500 USD $21.788393
≥1000 USD $20.555087
Inventory: 5499
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 18mm
Length 18mm
Technical
Illumination Type LED
Contact Current Rating 100mA
Mechanical Life 5,000,000 Cycles
Max Voltage Rating (DC) 42V
Throw Configuration DPDT
Max Current Rating 100mA
Contact Resistance 50mOhm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function Off-Mom
Circuit DPST-NO
Actuator Type Square, Button (Not Included)
Termination Style PC Pin, Solder Lug
Depth 18mm
Ingress Protection IP40
Current Rating (Amps) 100mA AC/DC
Type Standard
Termination Through Hole
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series 31
Packaging Bulk
Operating Temperature -25°C~55°C
Physical
Actuator Material Polyetherimide
Package / Case 100
Mounting Type Panel Mount, Front
Mount PCB
Contact Plating Gold
Contact Material Gold, Silver
Supply Chain
Factory Lead Time 8 Weeks
