31-282.025
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

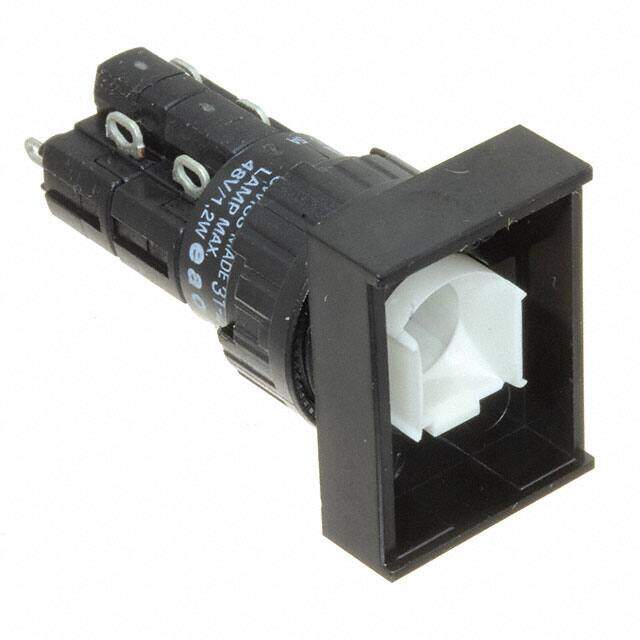

EAO 31-282.025 SWITCH, PUSHBUTTON, DPDT, 5A, 250V
PDF
/
Buying Options
Total Price: USD $53.34
Unit Price: USD $53.3368
≥1 USD $53.3368
≥10 USD $48.59624
≥100 USD $40.595456
Inventory: 75
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 18mm
Height 18mm
Technical
Contact Current Rating 5A
Mechanical Life 1,000,000 Cycles
Throw Configuration DPDT
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Off, Off-On
Circuit 4PST-2NO/2NC
Actuator Type Square, Button (Not Included)
Voltage - Rated AC 250V
Termination Style Solder Lug
Ingress Protection IP40
Current Rating (Amps) 5A AC
Type Standard
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series 31
Packaging Bulk
Operating Temperature -25°C~55°C
Physical
Mounting Type Panel Mount, Front
Contact Plating Gold
Contact Material Silver
Supply Chain
Factory Lead Time 8 Weeks
