03-616.011
RoHS
RoHS compliant
RoHS compliantPackage 616
Category Switches / Pushbutton Switches
Description

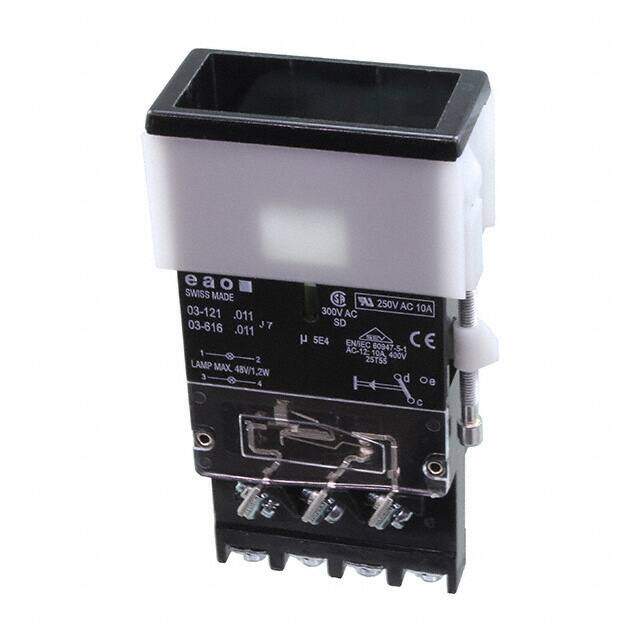

Switch Push Button N.O./N.C. SPDT Rectangular Button 10A 380VAC Momentary Contact Screw Panel Mount
PDF
/
Buying Options
Total Price: USD $79.21
Unit Price: USD $79.2088
≥1 USD $79.2088
≥10 USD $72.1688
≥100 USD $67.328096
≥500 USD $64.68792
≥1000 USD $60.287392
Inventory: 60
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Screw
Mounting Type Panel Mount, Front
Package / Case 616
Technical
Operating Temperature -25°C~55°C
Packaging Bulk
Series 03
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Standard
Current Rating (Amps) 10A AC
Ingress Protection IP40
Termination Style Screw Terminal
Voltage - Rated AC 400V
Actuator Type Rectangular, Button (Not Included)
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Rectangular - 41.20mm x 21.20mm
Mechanical Life 2,000,000 Cycles
Compliance
RoHS Status ROHS3 Compliant
