01-151.022
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

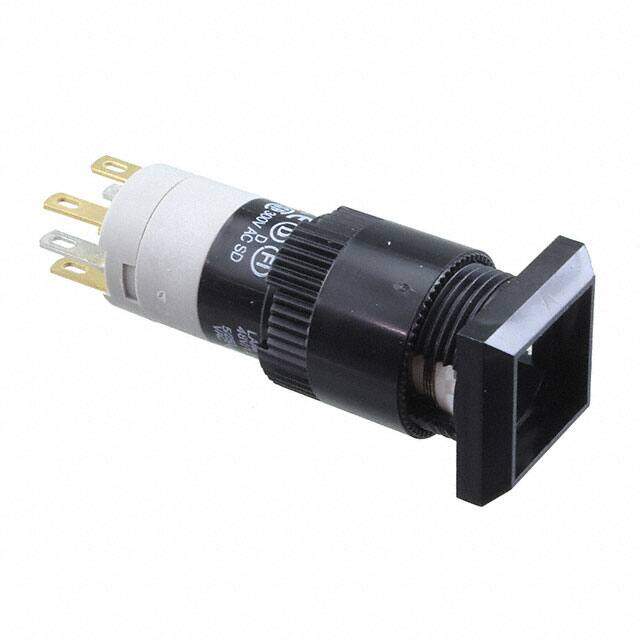

Switch Push Button N.O./N.C. DPST Square Button 5A 250VAC Momentary Contact Solder Panel Mount
PDF
/
Buying Options
Total Price: USD $27.78
Unit Price: USD $27.7816
≥1 USD $27.7816
≥10 USD $25.87992
Inventory: 33
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Mechanical Life 2,000,000 Cycles
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Mom, Off-Mom
Circuit DPST-NO/NC
Actuator Type Square, Button (Not Included)
Voltage - Rated AC 250V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Ingress Protection IP40
Current Rating (Amps) 5A AC
Type Standard
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series 01
Packaging Bulk
Operating Temperature -25°C~55°C
Physical
Mounting Type Panel Mount, Front
Mount Panel
Supply Chain
Factory Lead Time 8 Weeks
