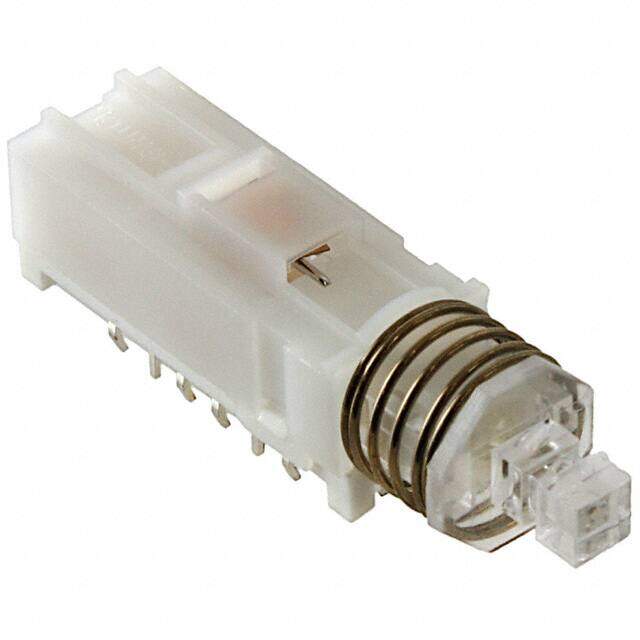

WBL4UEEGBQ
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH 4PDT 300MA 30V
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.941349
≥1 USD $0.941349
Inventory: 3763
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2010
Series WBL
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 300mA DC
Current Rating 300mA
Termination Style PC Pin
Body Length or Diameter 8.9916mm
Body Breadth 10.1092 mm
Actuator Type Plunger for Cap
Circuit 4PDT
Switch Function On-On
Contact Resistance 0.02mOhm
Insulation Resistance 100000000Ohm
Contact Current(DC)-Max 0.3A
Illumination Voltage (Nominal) 1.7 3.5VDC
Illumination Type, Color LED, Green/Blue
Dielectric Withstanding Voltage 500VAC V
Electrical Life 10000 Cycle(s)
Mechanical Life 10,000 Cycles
Illumination Type LED
Contact (DC) Max Rating R Load 0.3A@30VDC
PCB Hole Count 14
Actuator Travel 3.302 mm
Dimensions
Length - Termination 0.146 inch
Actuator Length 0.591 inch
Compliance
RoHS Status ROHS3 Compliant
