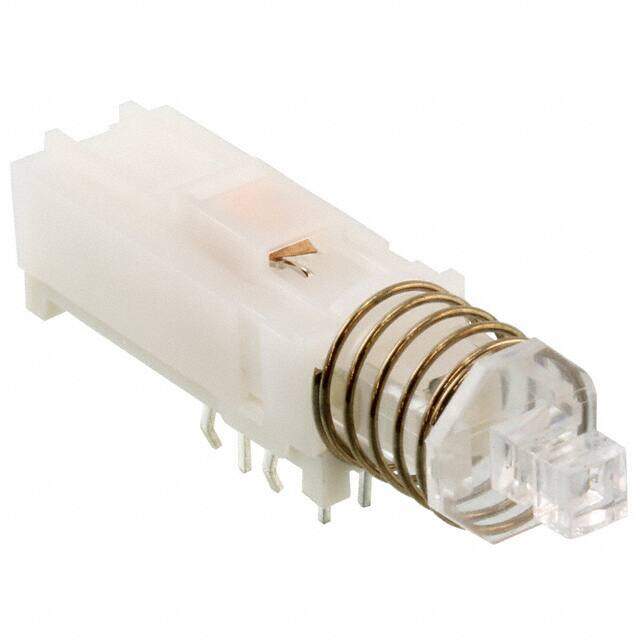

WBL2UEERBQ
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 300MA 30V
PDF
/
Buying Options
Total Price: USD $0.82
Unit Price: USD $0.817937
≥1 USD $0.817937
Inventory: 7456
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2010
Series WBL
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 300mA DC
Current Rating 300mA
Termination Style PC Pin
Body Length or Diameter 8.9916mm
Body Breadth 10.1092 mm
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-On
Contact Resistance 0.02mOhm
Insulation Resistance 100000000Ohm
Contact Current(DC)-Max 0.3A
Illumination Voltage (Nominal) 1.7 3.5VDC
Illumination Type, Color LED, Red/Blue
Dielectric Withstanding Voltage 500VAC V
Electrical Life 10000 Cycle(s)
Mechanical Life 10,000 Cycles
Illumination Type LED
Contact (DC) Max Rating R Load 0.3A@30VDC
PCB Hole Count 8
Actuator Travel 3.302 mm
Dimensions
Body Height 23.1902mm
Length - Termination 0.146 inch
Actuator Length 0.591 inch
Compliance
RoHS Status ROHS3 Compliant
