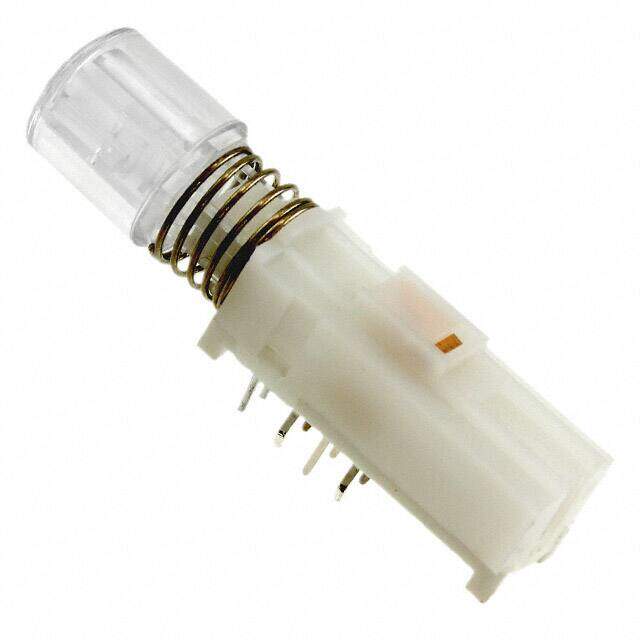

WBL2UEEGBQR05CLR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 300MA 30V
PDF
/
Buying Options
Total Price: USD $4.2
Unit Price: USD $4.1976
≥1 USD $4.1976
≥10 USD $3.255683
≥100 USD $2.713066
Inventory: 710
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.791 inch
Length - Termination 0.146 inch
Body Height 23.1902mm
Technical
Actuator Travel 3.302 mm
PCB Hole Count 8
Contact (DC) Max Rating R Load 0.3A@30VDC
Illumination Color Blue, Green
Illumination Type Illuminated, LED
Mechanical Life 10,000 Cycles
Electrical Life 10000 Cycle(s)
Dielectric Withstanding Voltage 500VAC V
Illumination Type, Color LED, Green/Blue
Illumination Voltage (Nominal) 1.7 3.5VDC
Contact Current(DC)-Max 0.3A
Color - Actuator/Cap Clear
Insulation Resistance 100000000Ohm
Contact Resistance 0.02mOhm
Switch Function On-On
Circuit DPDT
Actuator Type Round, Button
Body Breadth 10.1092 mm
Body Length or Diameter 8.9916mm
Termination Style PC Pin
Current Rating 300mA
Current Rating (Amps) 300mA DC
Voltage - Rated DC 30V
Additional Feature LED COLOR GREEN/BLUE
Type Standard, Illuminated
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WBL
Published 2010
Packaging Bulk
Operating Temperature -20°C~70°C
Physical
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Silver
Supply Chain
Factory Lead Time 10 Weeks
