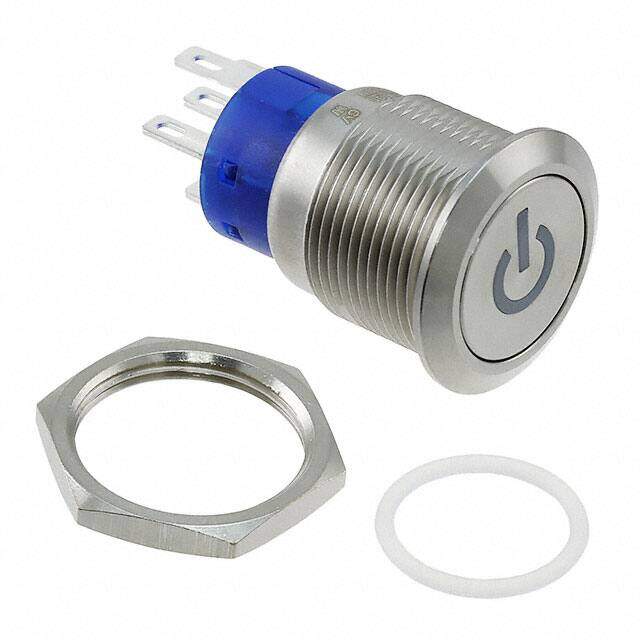

ULV4F2BSS503
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 250V
PDF
/
Buying Options
Total Price: USD $15.93
Unit Price: USD $15.928
≥1 USD $15.928
≥10 USD $14.27888
≥100 USD $12.94502
≥500 USD $12.47422
≥1000 USD $11.6897
≥3000 USD $10.826702
Inventory: 276
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Illumination Type, Color LED, White
Illumination Voltage (Nominal) 6VDC
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 19.20mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button, Flush
Voltage - Rated AC 250V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 3A AC
Type Anti-Vandal, Illuminated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Power Symbol
Series ULV4
Published 2016
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Mounting Type Panel Mount, Front
Supply Chain
Factory Lead Time 9 Weeks
