ULV4F2B11544
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

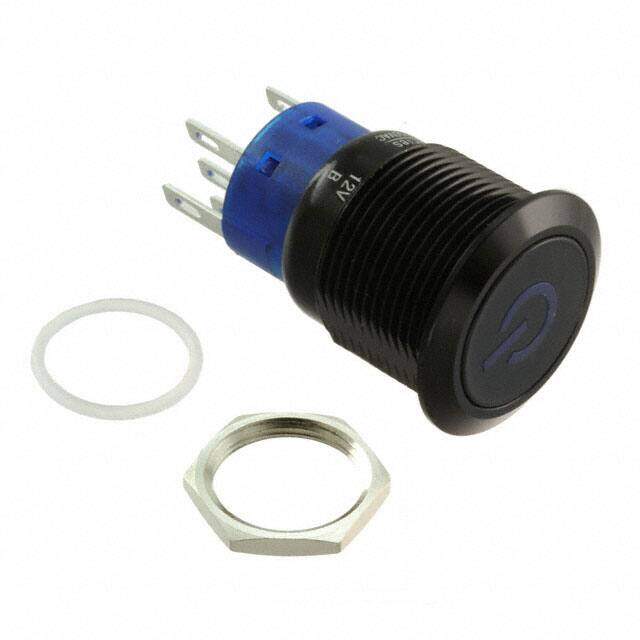

E-SWITCH ULV4F2B11544 VANDAL RESISTANT SWITCH, SPDT, 3A, 250V
PDF
/
Buying Options
Total Price: USD $11.19
Unit Price: USD $11.1936
≥1 USD $11.1936
≥10 USD $10.03728
≥100 USD $9.7097
Inventory: 3720
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Illumination Color Blue
Illumination Type LED
Operating Force 2.5 N
Contact Current Rating 3A
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 12VDC
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 19.20mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button, Flush
Voltage - Rated AC 250V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 3A AC
Type Anti-Vandal, Illuminated
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Power Symbol
Series ULV4
Published 2015
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 9 Weeks
