ULV4F23SS331
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

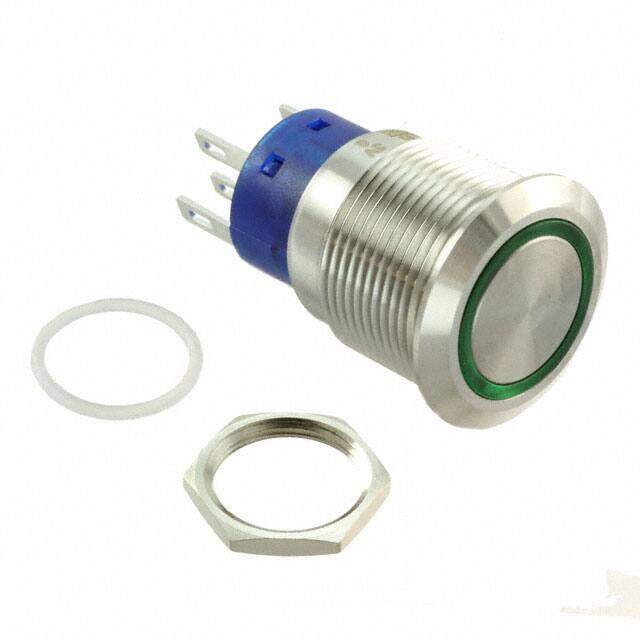

E-SWITCH ULV4F23SS331 VANDAL RESISTANT SWITCH, SPDT, 3A, 250V
PDF
/
Buying Options
Total Price: USD $17.06
Unit Price: USD $17.0632
≥1 USD $17.0632
≥10 USD $15.49592
≥100 USD $14.79984
≥500 USD $14.016288
≥1000 USD $13.494008
≥3000 USD $12.623389
Inventory: 136
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Illumination Color Green
Illumination Type LED
Operating Force 2.5 N
Contact Current Rating 3A
Mechanical Life 500,000 Cycles
Electrical Life 50,000 Cycles
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 3VDC
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 19.20mm Dia
Switch Function On-On
Circuit SPDT
Actuator Type Round, Button, Flush
Voltage - Rated AC 250V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 3A AC
Type Anti-Vandal, Illuminated
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series ULV4
Published 2015
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 9 Weeks
