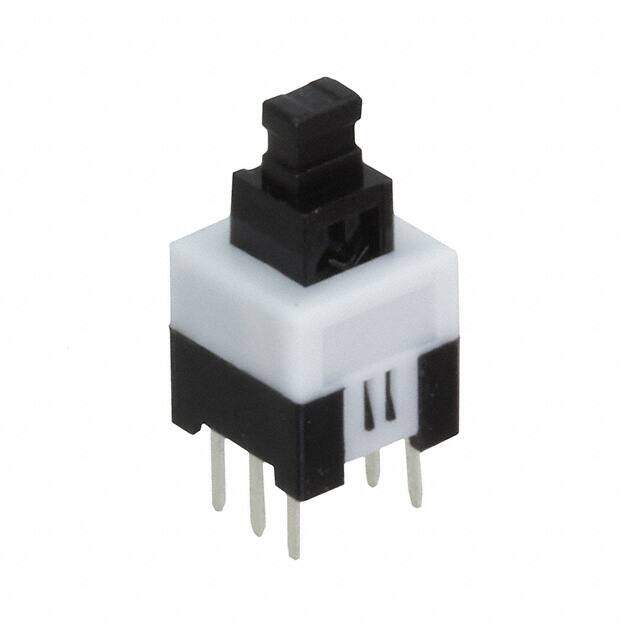

TL2230EEF100 image
Favorite
TL2230EEF100 image
Favorite

TL2230EEF100

E-Switch
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description Switch Push Button N.O./N.C. DPDT Rectangular Plunger 0.1A 30VAC 30VDC Latching PC Pins Thru-Hole
PDF
/
Buying Options
Total Price: USD $0.75
Unit Price: USD $0.748
≥1 USD $0.748
≥10 USD $0.66792
≥100 USD $0.574728
≥500 USD $0.464886
Inventory: 1278
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole

Technical

Packaging Bulk
Published 2008
Series TL2230
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 100mA DC
Current Rating 100mA
Termination Style PC Pin
Voltage - Rated AC 500V
Body Length or Diameter 7mm
Body Breadth 7 mm
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-On
Contact Current(DC)-Max 0.1A
Max Voltage Rating (AC) 30V
Electrical Life 10,000 Cycles
Max Voltage Rating (DC) 30V
Contact (DC) Max Rating R Load .1A@30VDC
Operating Force-Max 1.47 N

Dimensions

Body Height 7mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
