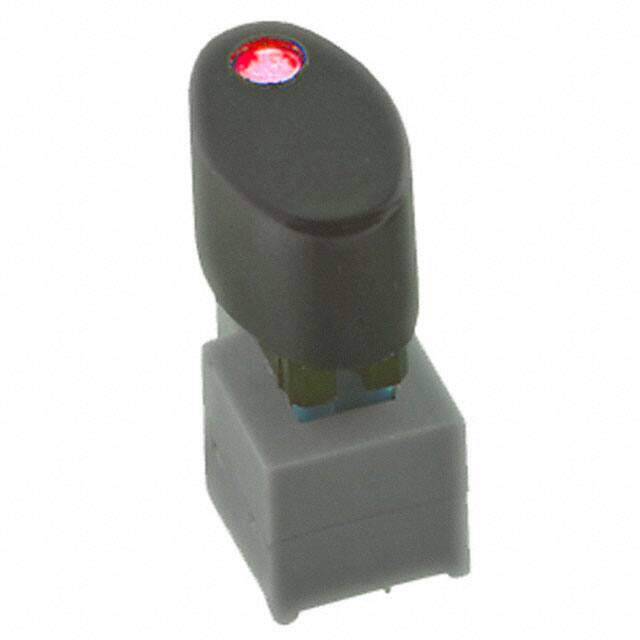

TL2205EEBPRB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.1A 30V
PDF
/
Buying Options
Total Price: USD $1.69
Unit Price: USD $1.694954
≥1 USD $1.694954
≥200 USD $0.65645
≥500 USD $0.632818
≥1000 USD $0.622315
Inventory: 8513
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2010
Series TL2205
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 100mA DC
Current Rating 100mA
Termination Style PC Pin
Body Length or Diameter 11.811mm
Body Breadth 8.509 mm
Actuator Type Oval, Button
Circuit DPDT
Switch Function On-On
Contact Resistance 0.05mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Black (White Window)
Contact Current(DC)-Max 0.1A
Illumination Voltage (Nominal) 1.7VDC
Illumination Type, Color LED, Red
Dielectric Withstanding Voltage 500VAC V
Electrical Life 10000 Cycle(s)
Mechanical Life 10,000 Cycles
Illumination Type Illuminated, LED
Illumination Color Red
Contact (DC) Max Rating R Load 0.1A@30VDC
PCB Hole Count 8
Actuator Travel 2.4892 mm
Dimensions
Body Height 8.509mm
Length - Termination 0.134 inch
Actuator Length 0.439 inch
Compliance
RoHS Status ROHS3 Compliant
