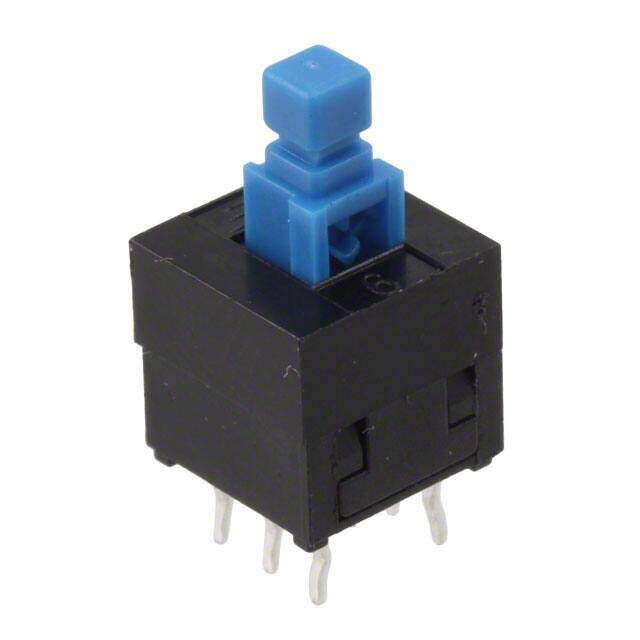

TL2201OAZB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.1A 30V
PDF
/
Buying Options
Total Price: USD $0.87
Unit Price: USD $0.8712
≥1 USD $0.8712
≥10 USD $0.77704
≥100 USD $0.737792
≥500 USD $0.701888
≥1000 USD $0.669064
≥3000 USD $0.639549
Inventory: 2898
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material POLYBUTYLENE TEREPHTHALATE
Actuator Material ACETAL
Center Contact Material PHOSPHOR BRONZE
Terminal Material COPPER ALLOY
End Contact Material PHOSPHOR BRONZE
End Contact Plating SILVER
Technical
Packaging Bulk
Published 2006
Series TL2201
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 100mA DC
Current Rating 100mA
Termination Style PC Pin
Body Length or Diameter 8.509mm
Body Breadth 8.509 mm
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-Mom
Contact Resistance 0.1mOhm
Insulation Resistance 100000000Ohm
Contact Current(DC)-Max 0.1A
Dielectric Withstanding Voltage 500VAC V
Electrical Life 10,000 Cycles
Contact Current Rating 100mA
Contact Timing BREAK-BEFORE-MAKE
Contact (DC) Max Rating R Load 0.1A@30VDC
PCB Hole Count 6
Contact Function ON-(ON)
Actuator Travel 2.4892 mm
Dimensions
Body Height 8.509mm
Length - Termination 0.138 inch
Actuator Length 0.256 inch
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
