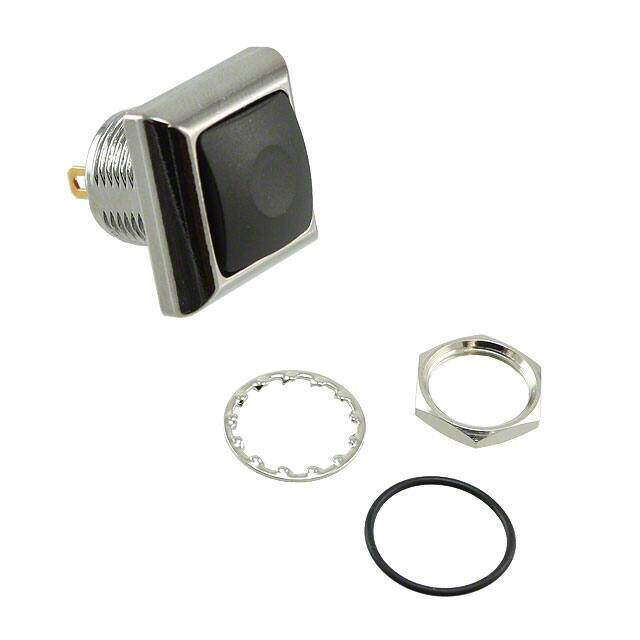

RP8400B2M1CECHRBLKNIL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PB SPST-NO 0.125A 125V
PDF
/
Buying Options
Total Price: USD $6.78
Unit Price: USD $6.776
≥1 USD $6.776
≥10 USD $6.08872
≥100 USD $5.807648
≥500 USD $5.557728
≥1000 USD $5.339224
≥3000 USD $5.058205
Inventory: 106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
End Contact Plating GOLD OVER SILVER
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2010
Series RP8400
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Voltage - Rated DC 50V
Current Rating (Amps) 125mA AC 100mA DC
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 100mA
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Square, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 13.60mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Contact Current(DC)-Max 0.2A
Sealing EPOXY
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 500,000 Cycles
Throw Configuration SPST
Contact Current Rating 125mA
Contact Current(AC)-Max 0.2A
Hole Diameter 13.6 mm
Contact Function OFF-(ON)
Actuator Travel 1.4986 mm
Bushing Diameter 0.472 inch
Dimensions
Actuator Length 0.276 inch
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
