RP8400B2M1CEBLKBLKNIL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

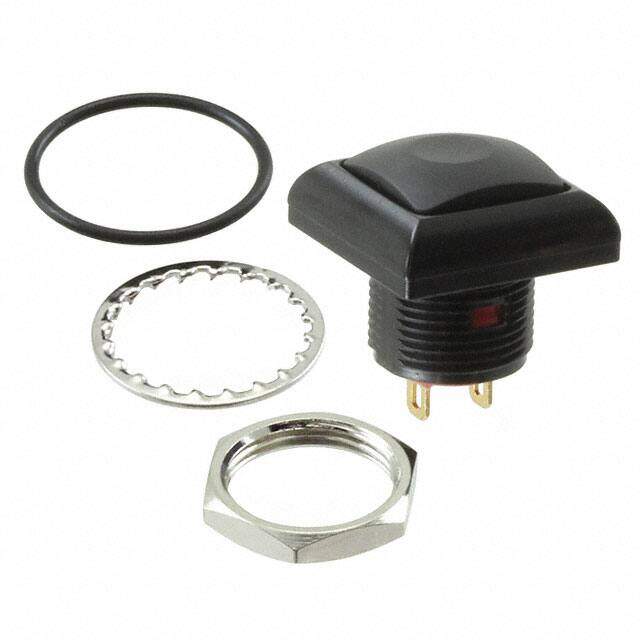

Pushbutton Switches Square, Illuminated Pushbutton Switch
PDF
/
Buying Options
Total Price: USD $5.79
Unit Price: USD $5.7904
≥1 USD $5.7904
≥10 USD $5.21048
≥100 USD $4.948768
≥500 USD $4.739328
≥1000 USD $4.582248
≥3000 USD $4.346566
Inventory: 1407
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP65
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.276 inch
Technical
Actuator Travel 1.4986 mm
Contact Function OFF-(ON)
Contact Current(AC)-Max 0.2A
Illumination Type Illuminated
Throw Configuration SPST
Electrical Life 500,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Sealing EPOXY
Contact Current(DC)-Max 0.2A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Square, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 125mA
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 125mA AC 100mA DC
Voltage - Rated DC 50V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series RP8400
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Housing Material Nylon
Surface Mount NO
Mounting Type Panel Mount, Front
Contact Plating Gold
Supply Chain
Factory Lead Time 9 Weeks
