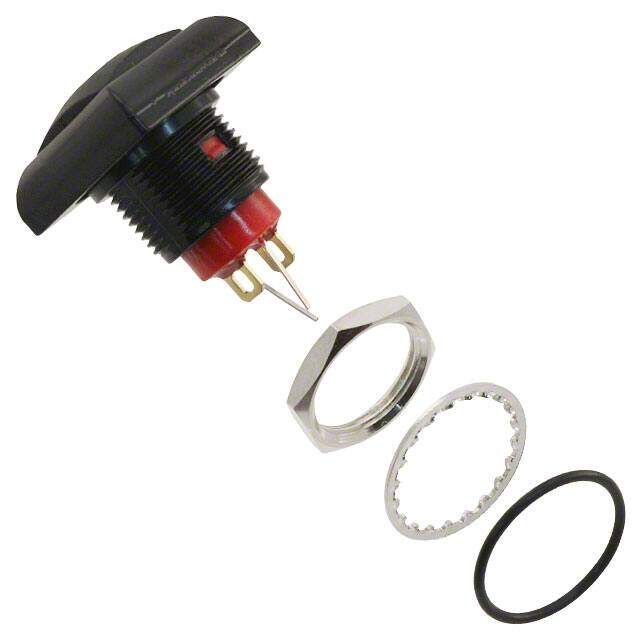

RP8400B2M1CEBLKBLKGRN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PB SPST-NO 0.125A 125V
PDF
/
Inventory: 2033
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP65, IP67, Waterproof
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.276 inch
Technical
Actuator Travel 1.4986 mm
Contact Function OFF-(ON)
Hole Diameter 13.6 mm
Contact Current(AC)-Max 0.2A
Illumination Color Green
Illumination Type Illuminated, LED
Throw Configuration SPST
Electrical Life 500,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Sealing EPOXY
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2VDC
Contact Current(DC)-Max 0.2A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Square, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 100mA
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 125mA AC 100mA DC
Voltage - Rated DC 50V
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series RP8400
Published 2010
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Housing Material Nylon
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold
Supply Chain
Factory Lead Time 9 Weeks
