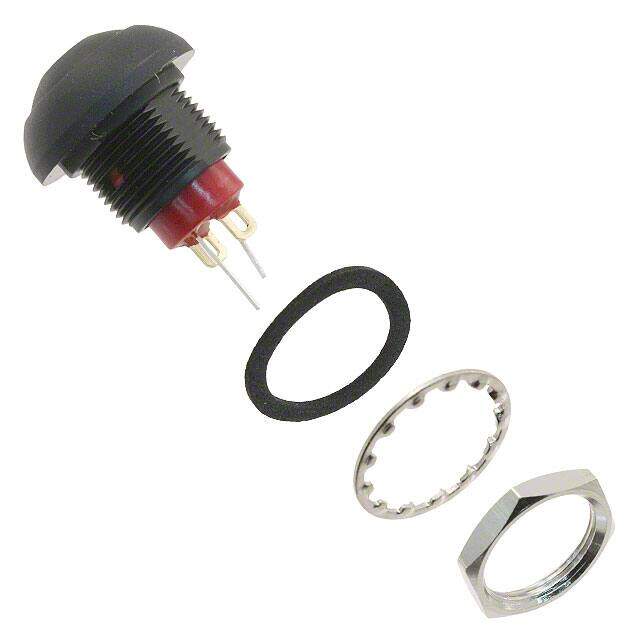

RP8100B2M1CEBLKBLKRED
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PB SPST-NO 0.125A 125V
PDF
/
Buying Options
Total Price: USD $5.07
Unit Price: USD $5.0688
≥1 USD $5.0688
≥10 USD $4.52056
≥100 USD $4.279264
≥500 USD $4.125616
≥1000 USD $3.928056
≥3000 USD $3.752496
Inventory: 506
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, IP67, Waterproof
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Body Height 9.4mm
Technical
Operating Force-Max 3.92 N
Hole Diameter 13.6 mm
Contact (AC) Max Rating R Load .125A@125VAC
Contact Current(AC)-Max 0.125A
Illumination Color Red
Illumination Type Illuminated, LED
Contact Current Rating 125mA
Throw Configuration SPST
Electrical Life 500,000 Cycles
Sealing EPOXY TERMINAL SEALED; IP67
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 2.1VDC
Contact Current(DC)-Max 0.1A
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Body Length or Diameter 17.5mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 100mA
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 125mA AC 100mA DC
Voltage - Rated DC 50V
HTS Code 8536.50.90.31
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series RP8100
Published 2008
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold
Supply Chain
Factory Lead Time 7 Weeks
