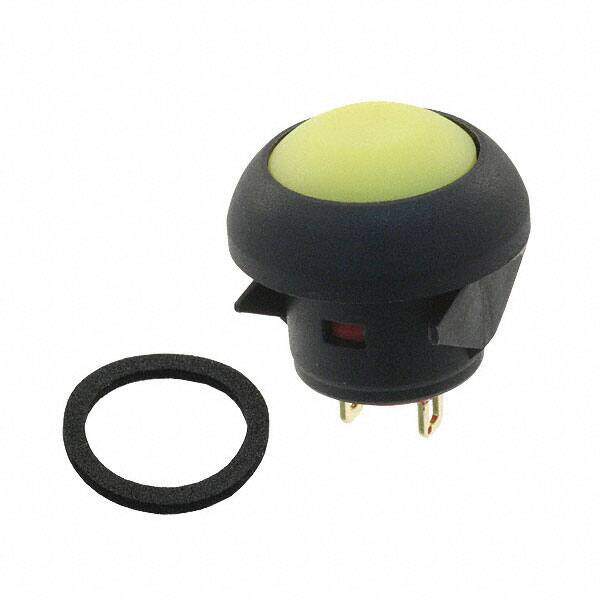

RP8100B1M1CEBLKYELNIL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PB SPST-NO 0.125A 125V
PDF
/
Buying Options
Total Price: USD $4.07
Unit Price: USD $4.0744
≥1 USD $4.0744
≥10 USD $3.322704
≥100 USD $3.16448
≥500 USD $2.63707
Inventory: 163
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, IP67, Waterproof
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Body Height 9.4mm
Technical
Operating Force-Max 3.92 N
Contact (AC) Max Rating R Load .125A@125VAC
Contact Current(AC)-Max 0.125A
Illumination Type Illuminated
Contact Current Rating 125mA
Throw Configuration SPST
Electrical Life 500,000 Cycles
Sealing EPOXY TERMINAL SEALED; IP67
Contact Current(DC)-Max 0.1A
Color - Actuator/Cap Yellow
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Body Length or Diameter 17.5mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 100mA
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 125mA AC 100mA DC
Voltage - Rated DC 50V
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series RP8100
Published 2010
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Housing Material Nylon
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Supply Chain
Factory Lead Time 9 Weeks
