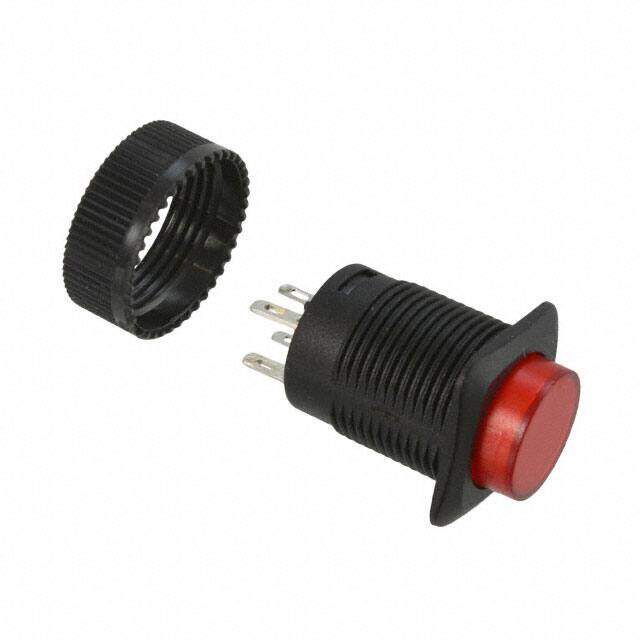

RP3508BBLKREDREDNS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 3A 125V
PDF
/
Buying Options
Total Price: USD $4.25
Unit Price: USD $4.2504
≥1 USD $4.2504
≥10 USD $3.83064
≥100 USD $3.638272
≥500 USD $3.484272
≥1000 USD $3.389056
Inventory: 3434
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 5.5mm
Width 18mm
Length 18mm
Technical
Contact (DC) Max Rating R Load 1.5A@250VDC
Contact (AC) Max Rating R Load 3A@125VAC
Contact Current(AC)-Max 3A
Thread Size M16
Illumination Type LED
Contact Current Rating 3A
Mechanical Life 20,000 Cycles
Electrical Life 6,000 Cycles
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 1.8VDC
Contact Current(DC)-Max 1.5A
Color - Actuator/Cap Red
Contact Resistance 50mOhm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function Off-On
Circuit SPST
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Orientation Straight
Current Rating (Amps) 3A AC
Voltage - Rated DC 250V
HTS Code 8536.50.90.33
Terminal Finish Gold (Au)
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Series RP3508
Published 2008
Packaging Bulk
Operating Temperature 0°C~65°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 10 Weeks
