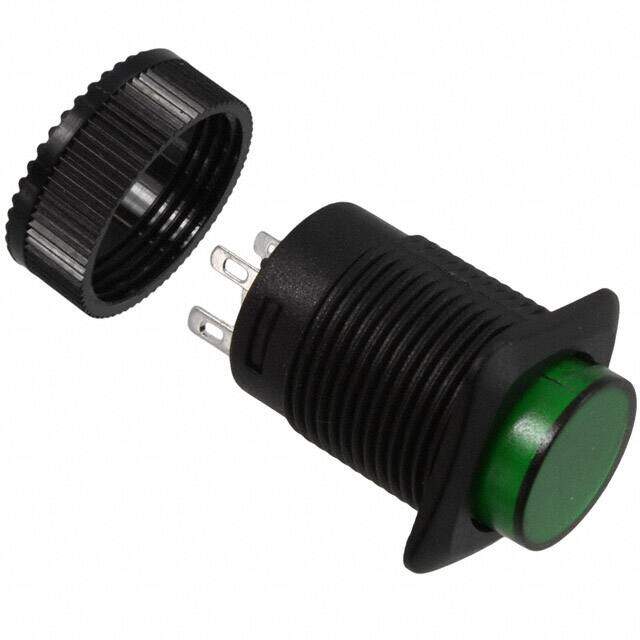

RP3508ABLKGRNGRNNS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 3A 125V
PDF
/
Buying Options
Total Price: USD $4.25
Unit Price: USD $4.2504
≥1 USD $4.2504
≥10 USD $3.83064
≥100 USD $3.638272
≥500 USD $3.484272
≥1000 USD $3.3891
Inventory: 1192
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Body Height 18mm
Technical
Contact (DC) Max Rating R Load 1.5A@250VDC
Contact (AC) Max Rating R Load 3A@125VAC
Contact Current(AC)-Max 3A
Illumination Type LED
Contact Current Rating 3A
Mechanical Life 20,000 Cycles
Throw Configuration SPST
Electrical Life 6,000 Cycles
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2.2VDC
Contact Current(DC)-Max 1.5A
Color - Actuator/Cap Green
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Body Length or Diameter 18mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Current Rating (Amps) 3A AC
Voltage - Rated DC 250V
HTS Code 8536.50.90.31
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series RP3508
Published 2008
Packaging Bulk
Operating Temperature 0°C~65°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 10 Weeks
