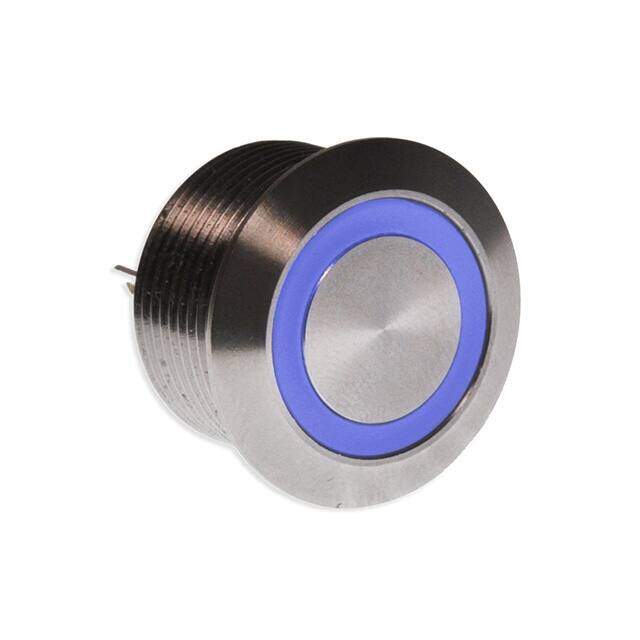

PVT4FW4SS341
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
PVT4 ANTI-VANDAL 19MM ILLUMINATE
PDF
/
Buying Options
Total Price: USD $19.7
Unit Price: USD $19.7032
≥1 USD $19.7032
≥10 USD $17.08608
≥100 USD $15.57835
Inventory: 166
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Panel Mount, Front
Technical
Operating Temperature -25°C~55°C
Packaging Bulk
Series PVT4
Feature Stainless Steel
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Anti-Vandal, Illuminated
Voltage - Rated DC 24V
Current Rating (Amps) 50mA DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Termination Style Wire Leads
Actuator Type Round, Button, Flush
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 19.00mm Dia
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 2.8VDC
Illumination Type, Color LED, Blue
Electrical Life 500,000 Cycles
Mechanical Life 500,000 Cycles
Compliance
RoHS Status ROHS3 Compliant
