PVT4FS4SS311
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

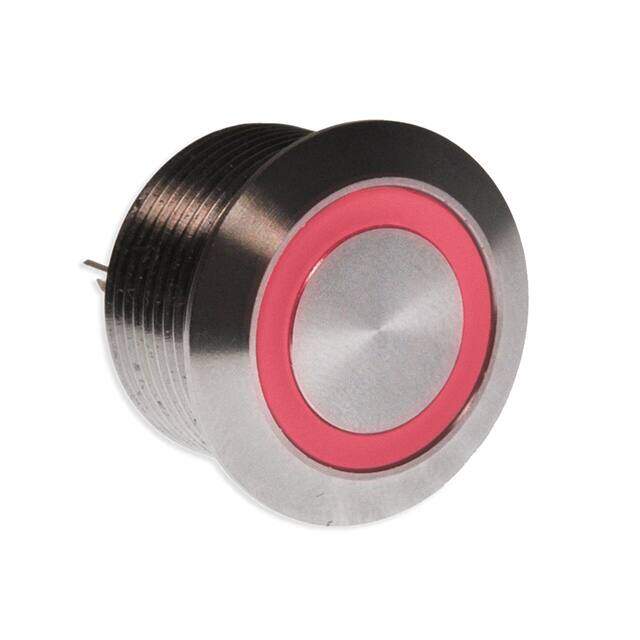

PVT4 Series SPST off-On 19 mm Flat Red Ring Illuminated Anti-Vandal Switch
PDF
/
Buying Options
Total Price: USD $17.48
Unit Price: USD $17.4768
≥1 USD $17.4768
≥10 USD $15.87256
≥100 USD $14.35698
≥500 USD $13.821834
≥1000 USD $12.930122
≥3000 USD $11.0363
Inventory: 98
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Panel Mount, Front
Technical
Operating Temperature -25°C~55°C
Packaging Bulk
Series PVT4
Feature Stainless Steel
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Anti-Vandal, Illuminated
Voltage - Rated DC 24V
Current Rating (Amps) 50mA DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Termination Style Solder Lug
Actuator Type Round, Button, Flush
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 19.00mm Dia
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 1.8VDC
Illumination Type, Color LED, Red
Electrical Life 500,000 Cycles
Mechanical Life 500,000 Cycles
Compliance
RoHS Status ROHS3 Compliant
